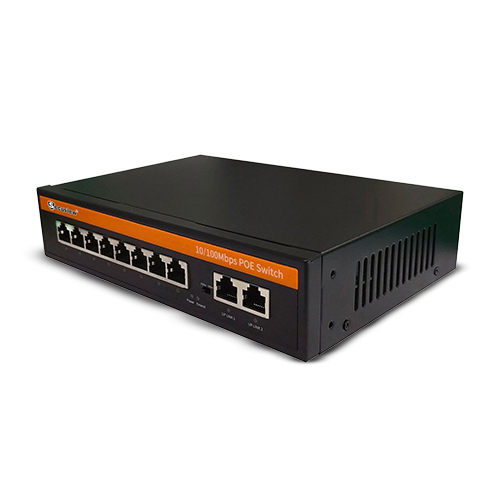

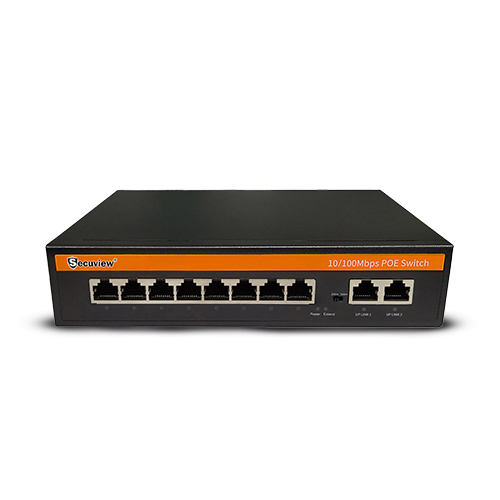

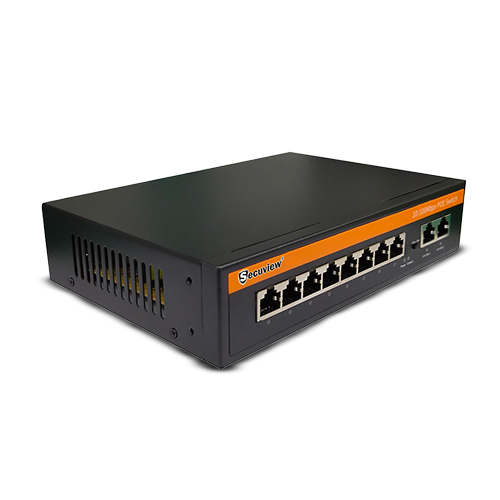

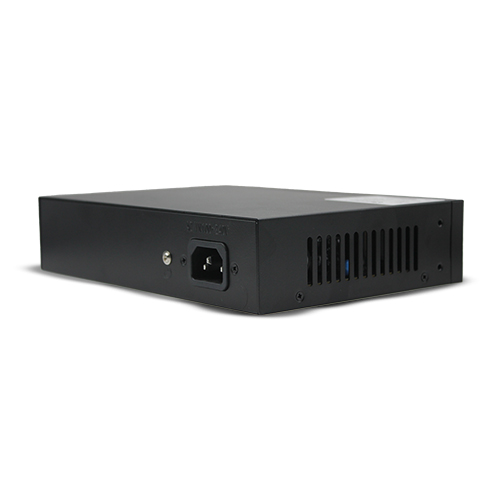

Secuview 120W 8-Port PoE Switch + 2 Uplink Ports | 10/100Mbps Operation.
* Supports full IEEE802.3af/at standard.
* Transmits Ethernet data and provides PoE over a single cable.
* Auto-detects and identifies compatible PD devices.
* Supports port power priority for stable network gateway supply.
* Short-circuit protection to safeguard PD devices.
* Energy-saving features: auto standby, cable length detection, optimized power for <10m cables.
* Full product line: 1–8 PoE ports, 1–2 uplink electrical ports, SFP port for cascading.
* Extended PoE transmission up to 250 meters for network expansion.
Secuview 120W 8-Port PoE Switch with 2 uplinks delivers reliable power and stable 10/100Mbps network performance for PoE devices.

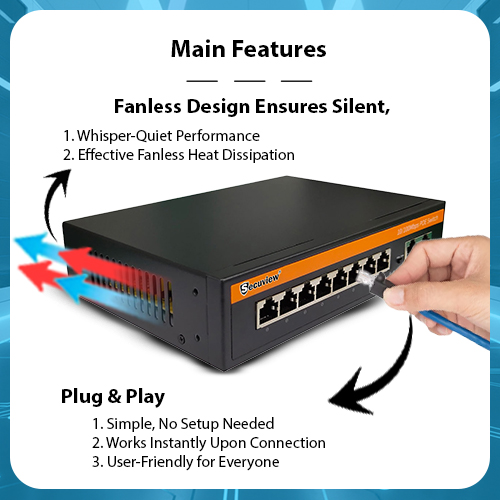

Main Features:
Fanless Design Ensures Silent,
- Whisper-Quiet Performance
- Effective Fanless Heat Dissipation
Plug & Play
- Simple, No Setup Needed
- Works Instantly Upon Connection
- User-Friendly for Everyone
Multiple Device Compatibility:
Built for seamless PoE device compatibility, ensuring stable, efficient, and adaptable network performance.

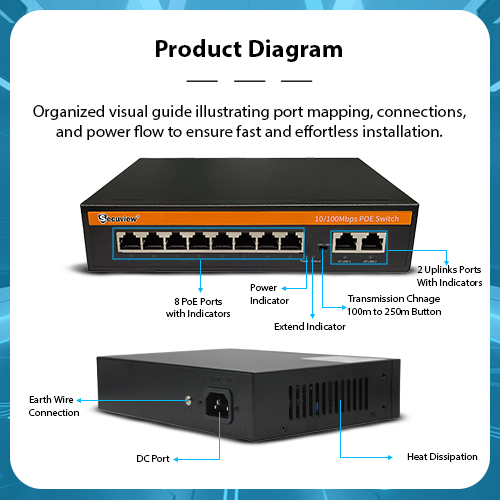

Product Diagram:
Organized visual guide illustrating port mapping, connections, and power flow to ensure fast and effortless installation.

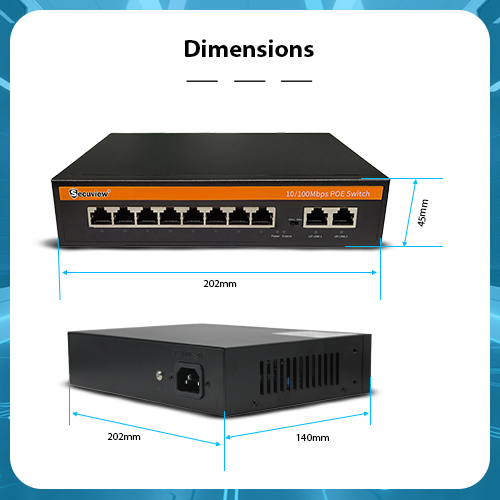

Dimensions:

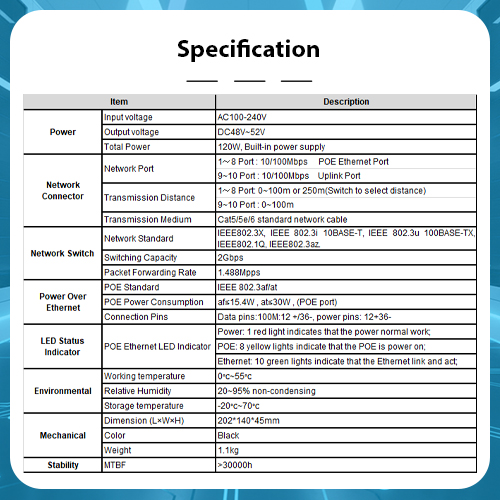

Specification:
Product Question & Answer
An 8-port PoE switch powers and connects multiple network devices through a single Ethernet cable. The Secuview 120W PoE Switch is suitable for IP cameras, wireless access points, VoIP phones, and access control systems, reducing installation complexity by delivering both power and data over one cable.
The switch provides 8 PoE ports for powered devices and 2 dedicated uplink ports for connecting to an NVR, router, or core network. This configuration allows surveillance traffic to remain organized while simplifying network expansion.
Dual uplink ports provide greater flexibility when connecting the switch to a recorder, router, or another network switch. This helps separate surveillance traffic from other network devices while allowing future expansion without occupying PoE ports.
Yes. The Secuview 120W PoE Switch complies with IEEE 802.3af/at standards, automatically detecting compatible powered devices and supplying the required power without manual configuration.
Yes. When Extend Mode is enabled, supported PoE ports can transmit power and network data up to 250 meters at reduced network speed, making it suitable for long-distance CCTV installations such as parking areas, boundary walls, and warehouses.
If a connected device does not receive power, check whether it supports IEEE 802.3af/at, verify the Ethernet cable quality, ensure the total PoE power budget has not been exceeded, and inspect all RJ45 connections. Incompatible passive PoE devices will not operate correctly on this switch.
Yes. The 120W 8-Port PoE Switch is well suited for CCTV systems in villas, apartment buildings, offices, warehouses, schools, retail stores, hotels, and commercial facilities across Doha, Lusail, Al Rayyan, Al Wakrah, and Al Khor, where reliable network and power distribution are required.
The switch supports 10/100Mbps Ethernet, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, and IEEE 802.3az standards, ensuring compatibility with a wide range of networking and surveillance equipment.
Yes. The switch operates as an unmanaged Plug-and-Play PoE switch, requiring no software configuration. Simply connect the power supply, attach the PoE devices, and connect an uplink port to the network or NVR to begin operation.
A 120W PoE switch centralizes both network connectivity and power delivery, reducing cable clutter, simplifying maintenance, and improving installation efficiency. It is especially beneficial for professional IP surveillance systems where multiple PoE devices are installed from one location.
