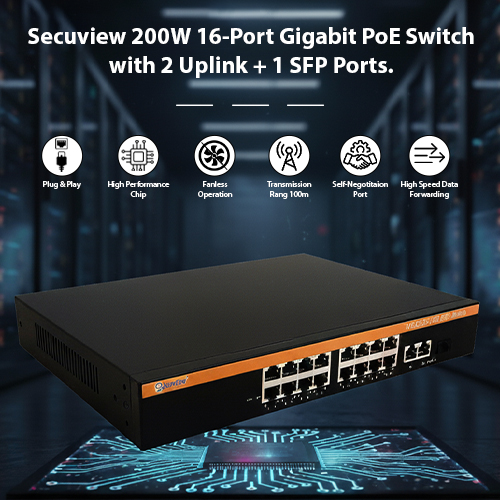

Secuview 200W 16-Port Gigabit PoE Switch with 2 Uplink + 1 SFP Ports.
* Complies with IEEE802.3 10/100/1000Mbps.
* Full/half duplex: IEEE 802.3x / Back Pressure.
* Ports support AutoMDI/MDIX.
* Lightning protection for stability.
* Supports VLAN (IEEE 802.1Q).
* Store-and-forward switching.
* Imported chips with heat dissipation.
* 1–2 uplink ports + 1 SFP for expansion.
* 19-port PoE switch with 16 adaptive ports.
* Supports IEEE802.3af/at, 15.4/25.5W per port.
Secuview 200W 16-Port Gigabit PoE Switch with 2 Uplink and 1 SFP port, delivering reliable power, fast data transfer, and stable performance for professional network setups.

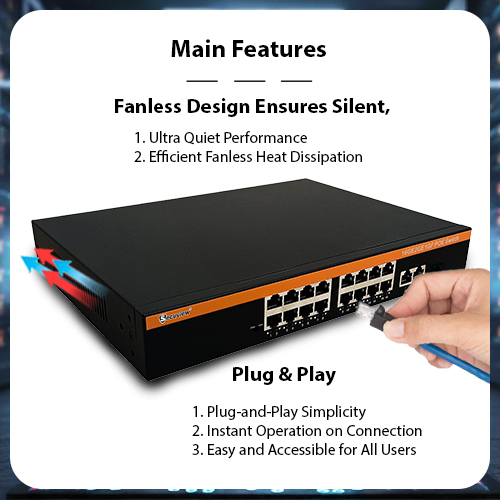

Main Features:
Fanless Design Ensures Silent,
- Ultra-Quiet Performance
- Efficient Fanless Heat Dissipation
Plug & Play
- Plug-and-Play Simplicity
- Instant Operation on Connection
- Easy and Accessible for All Users
Multiple Device Compatibility: Supports a wide range of PoE devices for smooth, flexible, and reliable network connectivity.

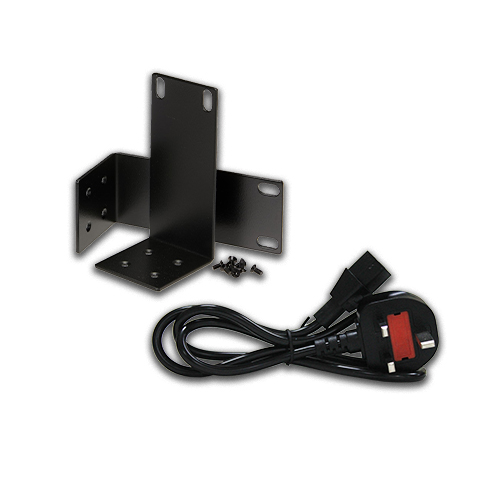

Rack Mount Installation: Streamlined rack-mount installation for a clean, secure, and efficient network setup.

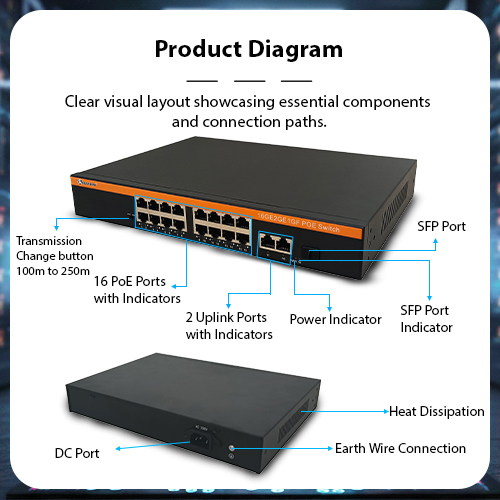

Product Diagram: Clear visual layout showcasing essential components and connection paths.

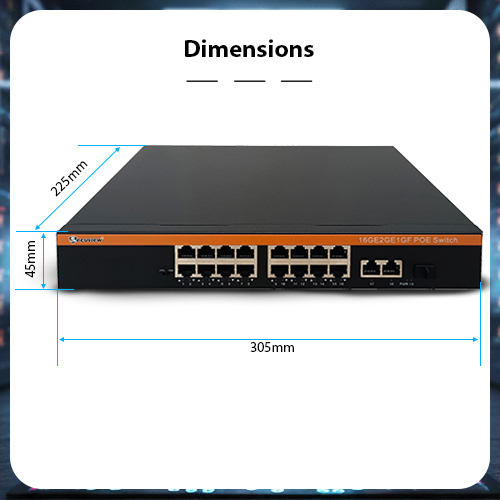

Dimensions:

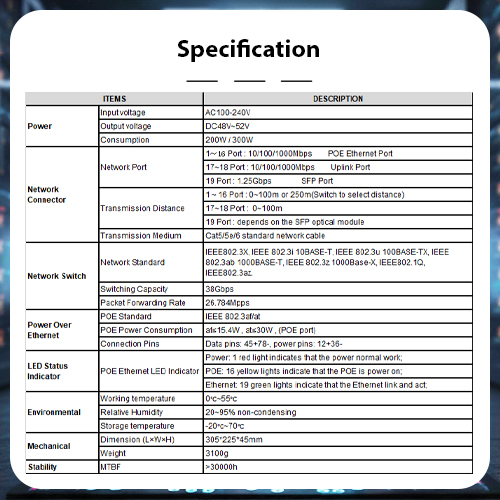

Specification:
Product Question & Answer
The Secuview 200W 16-Port Gigabit PoE Switch is built for medium to large IP networks that require centralized power and high-speed data transmission. It is suitable for connecting IP cameras, wireless access points, VoIP phones, NVRs, and access control systems through a single network infrastructure while reducing cable clutter.
The switch provides 16 Gigabit PoE ports, 2 Gigabit uplink ports, and 1 dedicated 1.25Gbps SFP port. With a 200W total PoE power budget, it supports multiple IEEE 802.3af/at devices while intelligently distributing power across connected equipment.
The 1.25Gbps SFP port enables fiber-optic connectivity for long-distance communication between network cabinets, buildings, or control rooms. It helps reduce signal degradation while providing a reliable backbone for large CCTV and enterprise network deployments.
Yes. The switch supports 10/100/1000Mbps adaptive Ethernet, making it suitable for 4MP, 5MP, 8MP, and 4K IP surveillance cameras. Gigabit bandwidth helps ensure smooth video transmission when multiple cameras are recording simultaneously.
Yes. By enabling Extend Mode, supported PoE ports can transmit both power and network data up to 250 meters using Cat5e or Cat6 cable at reduced network speed. This is ideal for perimeter fencing, parking areas, warehouses, and large industrial facilities.
Intermittent power issues can occur if the total connected devices exceed the 200W PoE budget, Ethernet cables are damaged, RJ45 connectors are improperly terminated, or non-standard PoE equipment is connected. Checking cable quality and overall power consumption usually resolves the issue.
Yes. The Secuview 200W 16-Port Gigabit PoE Switch is suitable for office buildings, schools, hotels, hospitals, retail centers, warehouses, factories, villas, and residential compounds across Doha, Lusail, Al Rayyan, Al Wakrah, Mesaieed, and Al Khor, where dependable PoE networking is required.
The switch supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q VLAN, IEEE 802.3X Flow Control, Auto MDI/MDIX, and Store-and-Forward Switching. It also delivers a 38Gbps switching capacity with a 26.784Mpps forwarding rate for efficient traffic handling.
Yes. It features a fanless metal chassis, efficient heat-dissipation design, lightning protection, and rack-mount compatibility, allowing reliable 24/7 operation in network cabinets and surveillance control rooms.
The 200W model is ideal for installations where the connected devices have moderate power requirements. It provides the same Gigabit performance, fiber expansion, and enterprise networking features as larger models while reducing power consumption and operating costs for medium-sized CCTV and business networks.
