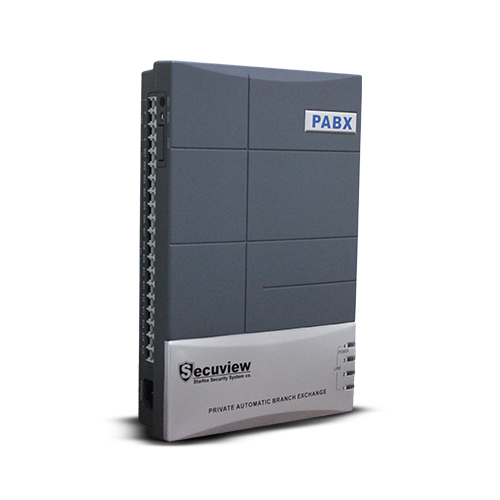

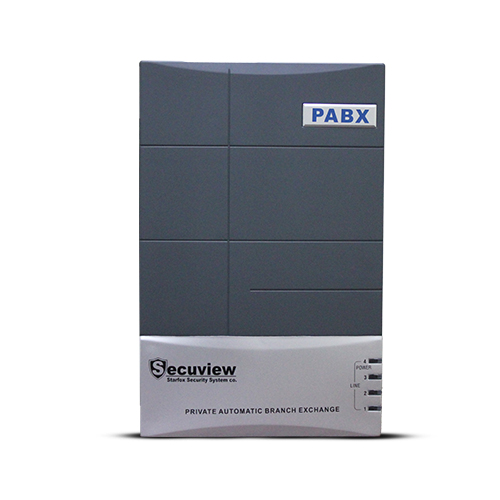

Secuview 16-Channel PABX-Advanced Communication for Growing Businesses.
Power supply voltage: AC 220V or AC 110V,50-60Hze
Power dissipation: ≤20VAe
Exchange mechanism: Analog switch matrix
Caller lD receiving mode: DTMF & FSK
Caller lD sending mode: DTMF & FSK@
Type of telephone: Dual Tone Multi-Frequency
Dial mode: Tone frequency signal
Communications path: 7
Feed on Ext port: DC38V 20-30mA
IC Power Supply: ±5V
Distortion: ≤10%
Ringing Voltage: AC 70V±10% 50HZ
internal dial tone: 380HZ Continuous square wave
Internal ring back tone: 380HZ square wave 1s on, 4s off
Internal busy tone: 380HZ square wave 0.3s on, 0.3s off
Internal verification tone: 380HZ square wave 0.3s on, 0.3s off
CO line prompt tone: 380HZ square wave 2s on, 5s off
External music interface: input voltage rang 0.5V~2.0V
CO line tone: depend on service provider
Secuview 16-Channel PABX provides advanced, reliable communication with easy installation, perfect for growing businesses.

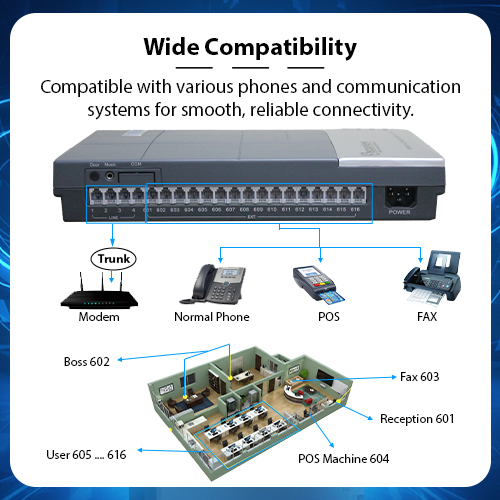

Wide Compatibility: Compatible with various phones and communication systems for smooth, reliable connectivity.

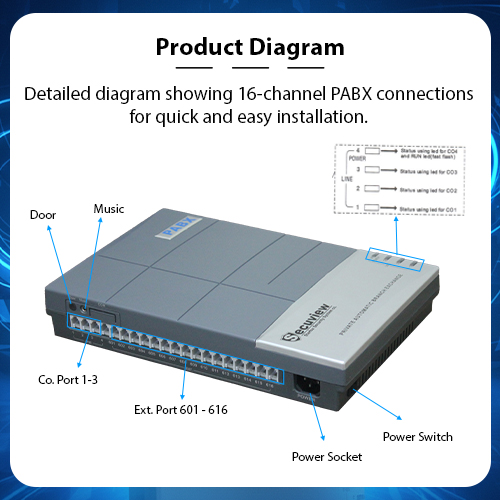

Product Diagram: Detailed diagram showing 16-channel PABX connections for quick and easy installation.

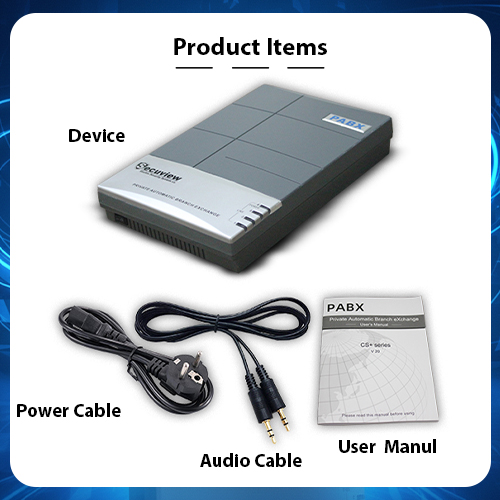

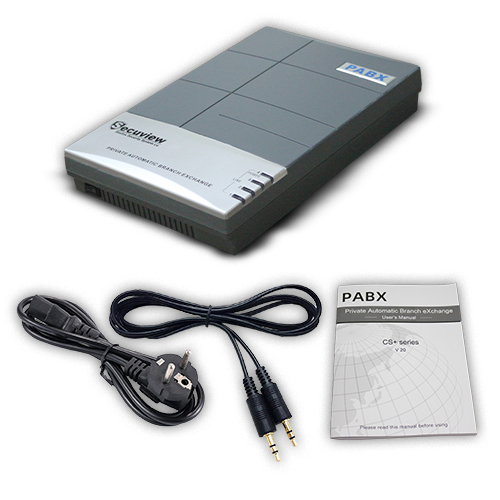

Product items:
- 16-Chennel PABX
- Power Cable
- Audio Cable
- User Manual
Dimensions:

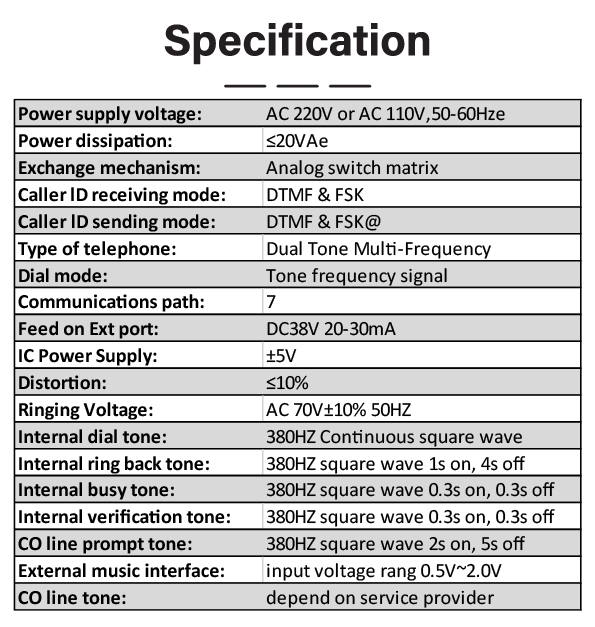

Specification:
Product Question & Answer
A 16-Channel PABX system is designed to manage internal and external telephone communications within an organization. It allows employees to make extension-to-extension calls, transfer calls, and efficiently share telephone lines, making it ideal for offices, clinics, schools, hotels, and growing businesses.
The Secuview 16-Channel PABX is built to support up to 16 telephone channels, helping businesses organize internal communication while reducing the need for separate external phone lines. It provides a scalable solution for expanding office environments.
Yes. The system supports both DTMF and FSK Caller ID transmission and reception, allowing compatible telephones to display incoming caller information for improved call management and customer service.
Yes. The Secuview 16-Channel PABX is compatible with Dual Tone Multi-Frequency (DTMF) analogue telephones, allowing businesses to continue using existing compatible desk phones without replacing their current equipment.
Yes. The system features an external music input (0.5V–2.0V), allowing compatible background music or music-on-hold devices to be connected, improving the caller experience while waiting for assistance.
Yes. The Secuview 16-Channel PABX is suitable for small and medium-sized businesses that need organized internal communication, call transfers, extension management, and reliable office telephony without the complexity of large enterprise systems.
Yes. The Secuview 16-Channel PABX is suitable for offices, retail stores, warehouses, clinics, schools, hotels, and commercial facilities throughout Doha, Lusail, Al Rayyan, Al Wakrah, and Al Khor, providing dependable business communication across Qatar.
The system supports AC 110V–220V (50–60Hz) power input with power consumption of ≤20VA, making it compatible with standard commercial electrical installations while maintaining energy-efficient operation.
Caller ID depends on three factors: your telephone service provider must transmit Caller ID information, the connected telephone must support DTMF or FSK Caller ID, and the feature must be enabled within the communication setup. Compatibility between all three components is essential for proper operation.
A 16-Channel analogue PABX is a practical choice for businesses using traditional telephone infrastructure that require reliable extension calling and straightforward installation. Companies planning advanced VoIP features, remote extensions, or SIP-based communications may benefit from an IP PBX solution instead.
