Secuview 1×8 HDMI Splitter | Distribute 4K Signal to Eight Displays Seamlessly.
HDMI version: HDMI 1.4b
HDMI resolution: Up to 3840×2160/30Hz
Support video color format: 8/10/12bit Deep color
Support Audio format: DTS-HD/Dolby-true HD/ DTS/Dolby-AC3/ DSD
Max bandwidth: 225MHz
Max baud rate: 2.25Gbps
Input cable distance: ≤15m AWG26 HDMI standard cable
Output cable distance: ≤25m AWG26 HDMI standard cable
HDMI input: 1 HDMI
HDMI Output: 8 HDMI
Max working current: 500mA
Power adapter format: input AC (50Hz, 60Hz): 100V-240V; Output: DC5V/1A
Operating temperature range: (-15℃to +55℃)
Operating humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 275x140x25(mm)
Weight: 640g

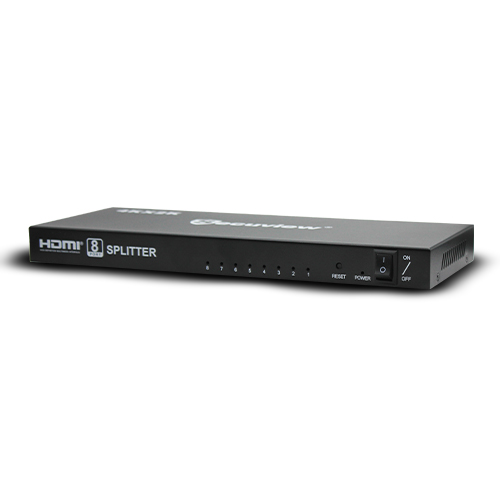

The Secuview 1×8 HDMI Splitter connects a single HDMI source to eight displays or projectors. It also regenerates the signal for longer cable runs, supporting resolutions up to 3840×2160 @30Hz.

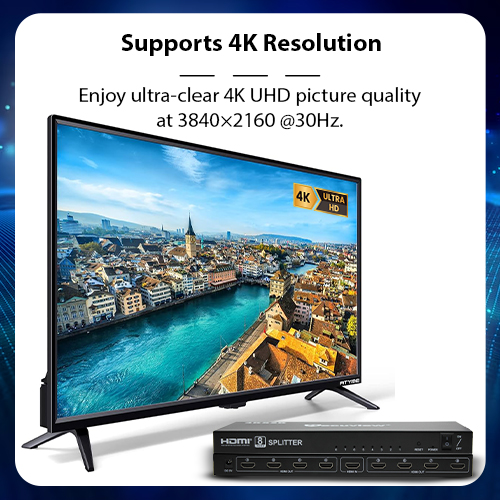

Supports 4K Resolution: Enjoy ultra-clear 4K UHD picture quality at 3840×2160 @30Hz

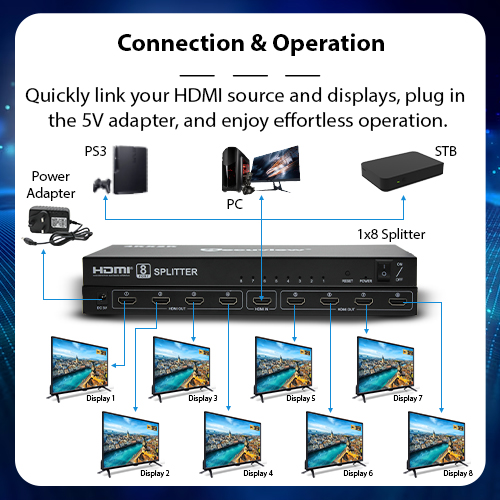

Connection & Operation: Quickly link your HDMI source and displays, plug in the 5V adapter, and enjoy effortless operation.

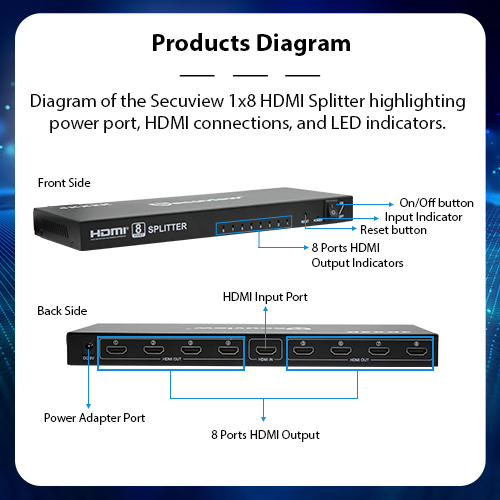

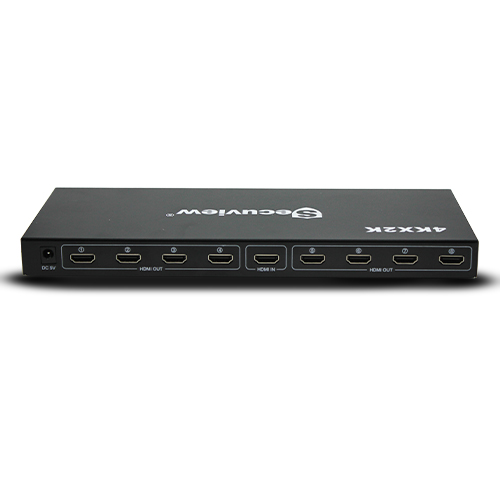

Product Diagram: The Secuview 1×8 HDMI Splitter showcases front-side LED indicators, reset, and power buttons, while the rear side features HDMI ports and the power input.

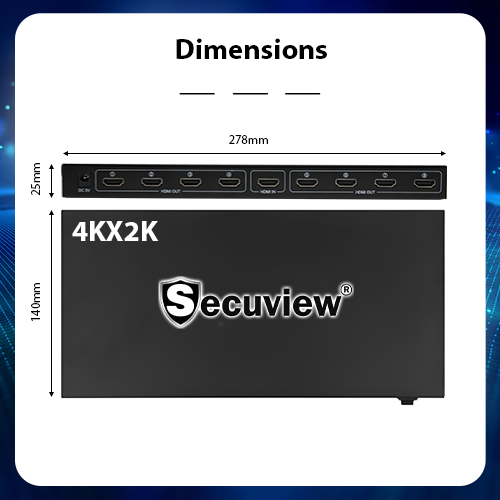

Dimension:

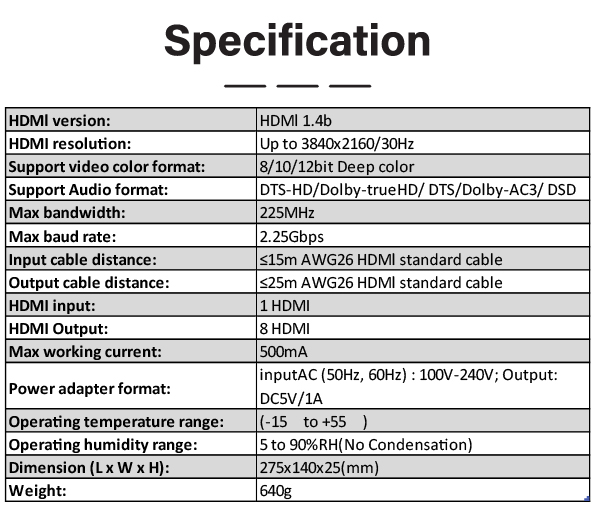

Specification:
Product Question & Answer
A 1×8 HDMI splitter allows you to duplicate a single HDMI source onto eight HDMI displays simultaneously without compromising signal quality. The Secuview 1×8 HDMI Splitter supports 4K UHD resolution up to 3840 × 2160 @30Hz, HDMI 1.4b, Deep Color, and high-definition audio formats, making it ideal for digital signage, retail displays, conference rooms, classrooms, and surveillance monitoring systems.
Yes. The Secuview 1×8 HDMI Splitter duplicates one HDMI input signal to eight HDMI outputs simultaneously. Every connected display receives the same high-quality video and audio signal, making it ideal for environments where identical content must be shown on multiple screens.
The splitter supports Ultra HD 4K resolution up to 3840 × 2160 @30Hz and is fully backward compatible with 1080p Full HD, 720p HD, and lower HDMI resolutions, ensuring compatibility with both modern and legacy display devices.
The Secuview 1×8 HDMI Splitter supports multiple high-definition audio formats, including Dolby TrueHD, DTS-HD Master Audio, Dolby AC3, DTS, and DSD, allowing video and audio to be transmitted together over a single HDMI connection.
The splitter supports input cable distances up to 15 meters and output cable distances up to 25 meters using AWG26 standard HDMI cables while maintaining reliable signal quality under recommended installation conditions.
Yes. The Secuview 1×8 HDMI Splitter offers true plug-and-play operation. Simply connect one HDMI source, attach up to eight HDMI displays, connect the included DC 5V power adapter, and the system is ready to distribute video without complicated software or configuration.
The Secuview 1×8 HDMI Splitter is widely used in shopping malls, retail stores, conference rooms, classrooms, hotels, restaurants, mosques, airports, hospitals, exhibition halls, CCTV control rooms, digital signage networks, and corporate offices across Doha, Lusail, Al Rayyan, Al Wakrah, Mesaieed, and Al Khor, where one HDMI source needs to be displayed on multiple screens simultaneously.
No. The splitter is designed to regenerate and distribute the HDMI signal while maintaining stable video and audio performance across all connected displays. This helps ensure consistent image quality throughout the installation.
Yes. Its 1 input to 8 outputs, 4K UHD support, Deep Color compatibility, high-definition audio support, long-distance transmission capability, and compact metal construction make it suitable for professional AV installations, commercial digital signage, educational facilities, entertainment venues, and CCTV monitoring systems.
The Secuview 1×8 HDMI Splitter combines 1 HDMI input, 8 simultaneous HDMI outputs, 4K UHD 3840 × 2160 @30Hz support, HDMI 1.4b compatibility, Deep Color technology, Dolby & DTS audio support, signal regeneration, plug-and-play installation, and reliable multi-display performance, making it an excellent solution for professional video distribution systems.
