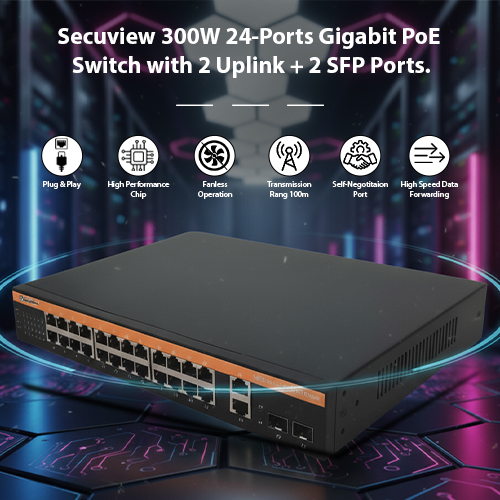

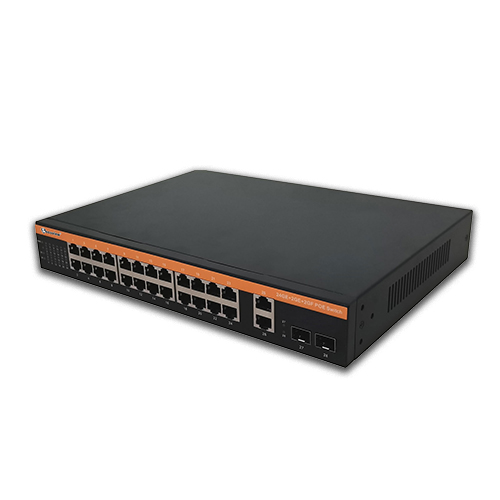

Secuview 300W 24-Ports Gigabit PoE Switch with 2 Uplink+2 SFP Ports.
* Complies with IEEE802.3 10/100/1000Mbps standards.
* Full duplex: IEEE 802.3x; Half duplex: Back Pressure.
* Ports support AutoMDI/MDIX.
* Lightning protection for stability.
* Supports fixed VLANs (IEEE 802.1Q).
* Store-and-forward switching.
* Imported chips with automatic heat dissipation.
* 1–2 uplink 10/100/1000Mbps ports + 1–2 SFP (1.25Gbps).
* 28-port PoE switch with 24 adaptive PoE ports.
* Supports IEEE802.3af/at with 15.4/25.5W per port.
High-performance Secuview 300W 24-Port Gigabit PoE Switch with 2 Uplink and 2 SFP ports, designed for fast, stable, and efficient network deployments

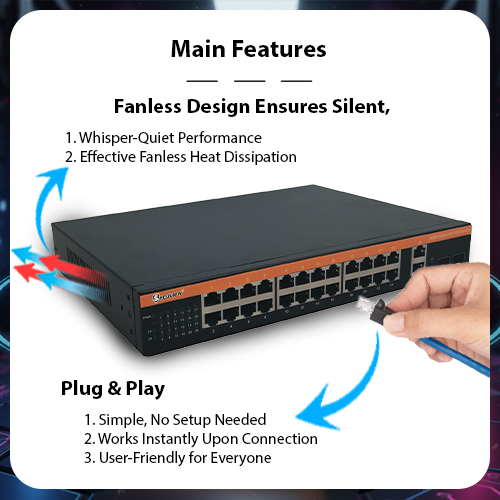

Main Features:
Fanless Design Ensures Silent,
- Whisper-Quiet Performance
- Effective Fanless Heat Dissipation
Plug & Play
- Simple, No Setup Needed
- Works Instantly Upon Connection
- User-Friendly for Everyone
Multiple Device Compatibility:
Designed for seamless PoE device integration, delivering reliable, efficient, and flexible network performance.

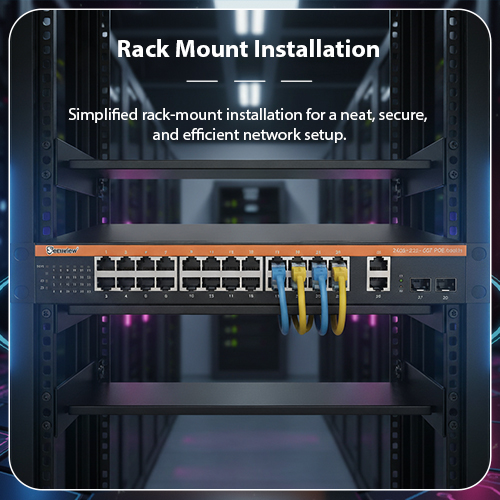

Rack Mount Installation:
Simplified rack-mount installation for a neat, secure, and efficient network setup.

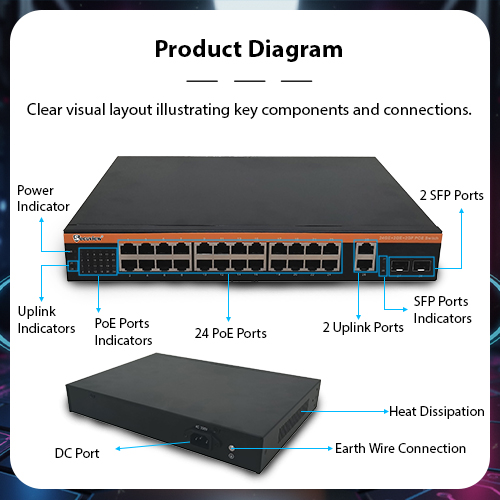

Product Diagram:
Clear visual layout illustrating key components and connections.

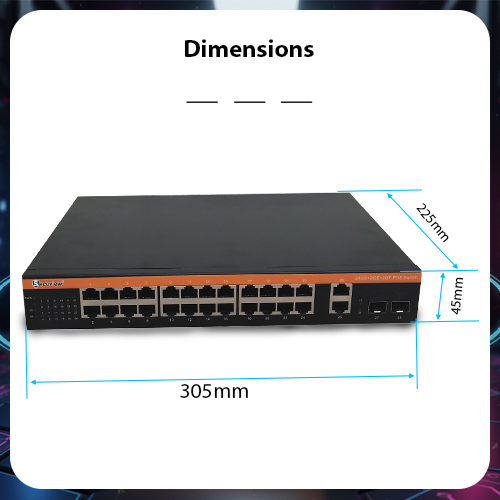

Dimensions:

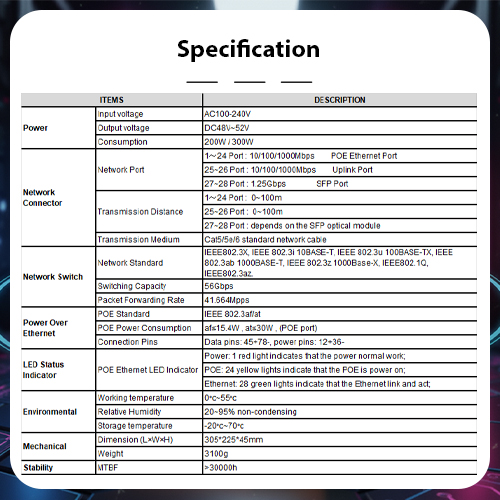

Specification:
Product Question & Answer
The Secuview 300W 24-Port Gigabit PoE Switch is built for high-density IP networks where multiple powered devices operate simultaneously. It is ideal for enterprise CCTV systems, office networks, hotels, hospitals, schools, warehouses, data rooms, wireless access points, VoIP systems, and access control installations that require centralized power and Gigabit connectivity.
A 300W total PoE budget allows the switch to supply power to a larger number of IEEE 802.3af/at devices without requiring separate power adapters. This helps reduce installation costs while supporting multiple IP cameras, wireless access points, and other powered network devices operating at the same time.
The dual SFP fiber ports allow high-speed fiber uplinks between network cabinets, server rooms, and separate buildings. They help extend the network over longer distances while maintaining stable bandwidth for surveillance and enterprise applications.
Yes. The switch supports 10/100/1000Mbps adaptive Ethernet across all PoE ports, making it suitable for 4MP, 5MP, 8MP, and 4K IP cameras. Gigabit throughput helps reduce network congestion when numerous cameras stream to an NVR simultaneously.
No. The switch features a Plug-and-Play unmanaged design, allowing installation without software setup or programming. Simply connect the uplink, attach PoE devices, and power on the switch to begin operation immediately.
A PoE port may stop supplying power if the connected device exceeds the supported output, the total 300W PoE budget has been reached, the Ethernet cable is damaged, or the device is not compatible with IEEE 802.3af/at standards. Inspecting the cable and verifying device compatibility usually resolves the issue.
Yes. The Secuview 24-Port 300W Gigabit PoE Switch is suitable for corporate offices, shopping malls, universities, hospitals, hotels, logistics centers, factories, residential compounds, government facilities, and multi-building CCTV systems across Doha, Lusail, Al Rayyan, Al Wakrah, Mesaieed, and Al Khor, where reliable PoE networking is essential.
Its standard rack-mount chassis allows the switch to be installed neatly inside network cabinets, reducing cable clutter, improving airflow, and making maintenance easier for professional IT and surveillance environments.
The switch includes a fanless cooling system, industrial heat-dissipation design, LED status indicators, and high-quality internal components to support stable 24/7 performance while minimizing maintenance requirements.
A 24-port Gigabit PoE switch provides sufficient capacity for growing networks without adding multiple smaller switches. It simplifies infrastructure management, centralizes power delivery, reduces equipment costs, and leaves room for future network expansion as more PoE devices are added.
