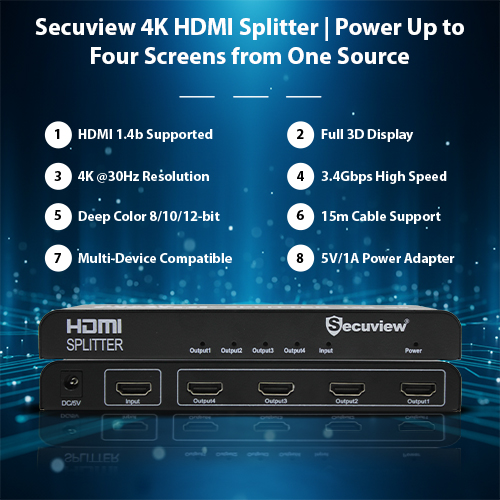

Secuview 4K HDMI Splitter | Power Up to Four Screens from One Source
HDMI version: HDMI 1.4b
HDMI Resolution: Up to 3840×2160/30Hz
Support video format: 8/10/12bit Deep color
Support Audio format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth: 340MHz
Max baud rate: 3.4Gbps
Input cable distance: (1080p resolution) ≤15m, (4K resolution) ≤8m AWG26 HDMI standard cable
Output cable distance:(1080p resolution) ≤15m, (4K resolution) ≤8m AWG26 HDMI standard cable
Max Working Current: 500mA
Power Adapter Format: input AC (50Hz, 60Hz)100V-240V; output: DC5V/1A
Operating Temperature range: (-15℃to +55℃)
Dimension(L x W x H): 178x66x20(mm)
Weight: 220g
Experience crystal-clear 4K output on four displays from a single source with the Secuview 1×4 HDMI Splitter — perfect for home, office, or retail setups.
Ultra HD 4k Resolution: Delivers sharp, vibrant 4K UHD visuals at 3840×2160 @30Hz.

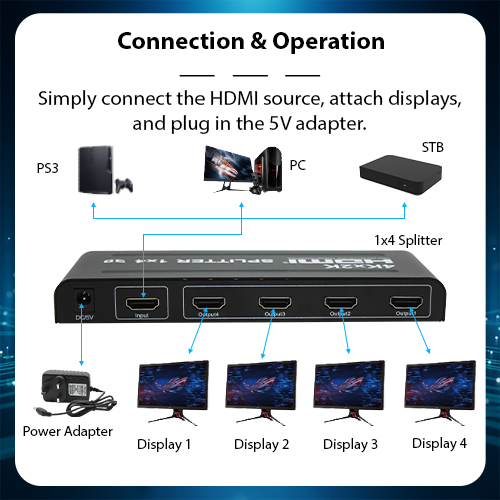

Connection & Operation: Simply connect the HDMI source, attach displays and plug in the 5V adapter.

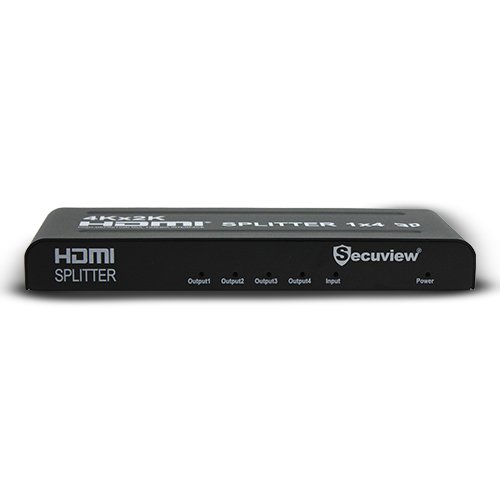

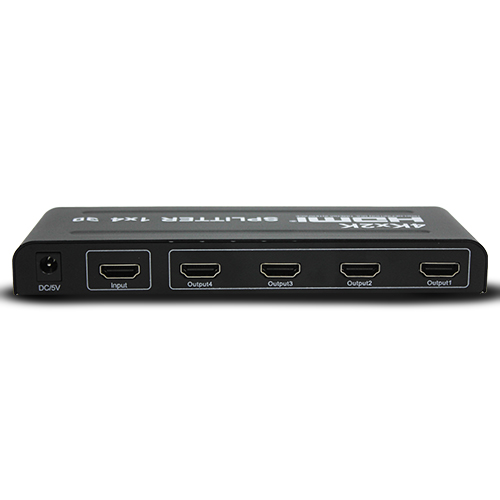

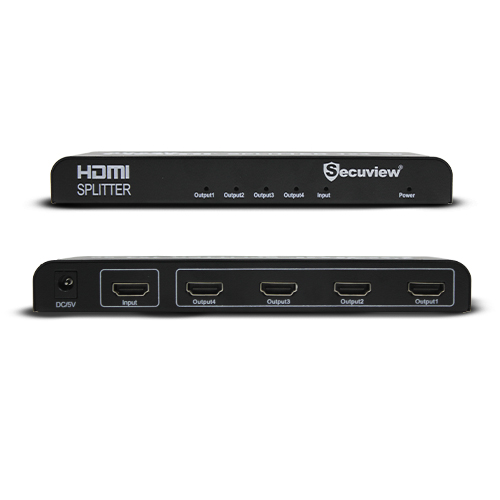

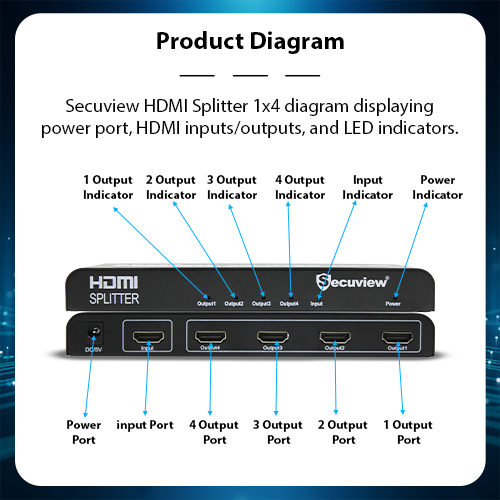

Product Diagram: Secuview HDMI Splitter 1×4 diagram displaying power port, HDMI inputs/outputs, and LED indicators.

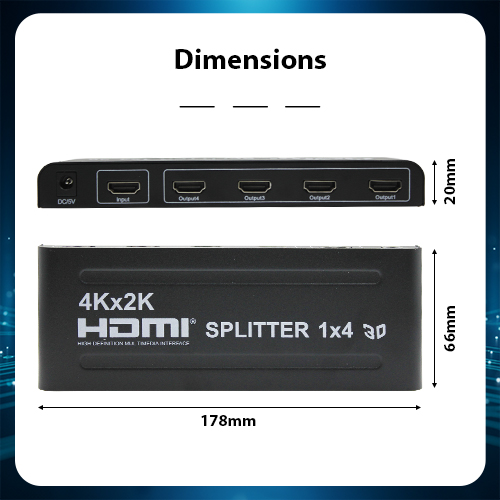

Dimensions:

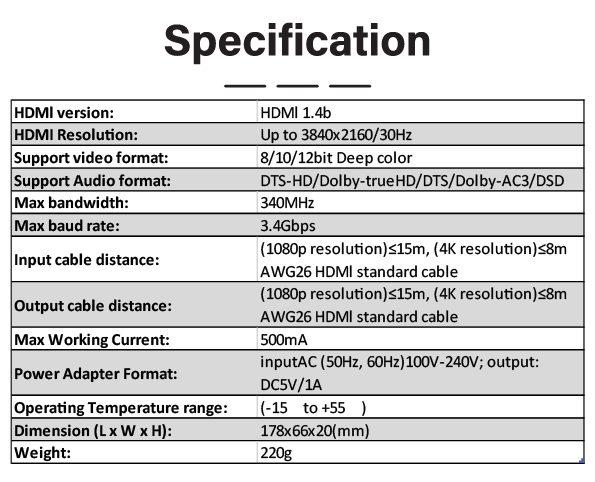

Specification:
Product Question & Answer
A 1×4 HDMI splitter allows one HDMI source device to display the same video and audio content on four HDMI displays simultaneously. The Secuview 4K HDMI Splitter supports Ultra HD 4K resolution up to 3840 × 2160 @30Hz, HDMI 1.4b, Deep Color technology, and high-definition audio formats, making it ideal for meeting rooms, retail stores, classrooms, digital signage, and CCTV monitoring systems.
Yes. The Secuview 1×4 HDMI Splitter duplicates one HDMI input signal to four HDMI outputs at the same time. Every connected display receives identical video and audio, making it perfect for presentations, advertising displays, training rooms, and surveillance monitoring.
The splitter supports Ultra HD 4K resolution up to 3840 × 2160 @30Hz and is backward compatible with 1080p Full HD, 720p HD, and lower HDMI resolutions, allowing it to work with both modern and older HDMI display devices.
The Secuview 4K HDMI Splitter supports several premium digital audio formats, including Dolby TrueHD, DTS-HD Master Audio, Dolby AC3, DTS, and DSD, enabling synchronized high-quality audio and video transmission through a single HDMI connection.
Using AWG26 standard HDMI cables, the splitter supports up to 15 meters for both input and output at 1080p resolution, while 4K transmission is supported up to 8 meters for reliable Ultra HD performance.
Yes. The Secuview 1×4 HDMI Splitter features a plug-and-play design. Simply connect one HDMI source, connect up to four HDMI displays, attach the included 5V power adapter, and the splitter begins distributing video immediately without software installation or configuration.
The Secuview 4K HDMI Splitter is commonly installed in conference rooms, classrooms, retail stores, shopping malls, restaurants, hotels, exhibition booths, corporate offices, CCTV monitoring rooms, reception areas, digital signage networks, and training centers across Doha, Lusail, Al Rayyan, Al Wakrah, Mesaieed, and Al Khor, where one HDMI source needs to be shared across four displays.
Yes. The splitter is engineered to regenerate and distribute HDMI signals efficiently, helping maintain stable image and audio quality across all connected displays while supporting Ultra HD resolution under recommended installation conditions.
Yes. Its 1 HDMI input, 4 simultaneous HDMI outputs, 4K UHD support, Deep Color technology, HD audio compatibility, stable signal distribution, and compact design make it suitable for commercial AV systems, education, hospitality, retail environments, and professional CCTV display applications.
The Secuview 4K HDMI Splitter combines 1 HDMI input, 4 HDMI outputs, Ultra HD 4K 3840 × 2160 30Hz support, HDMI 1.4b compatibility, Deep Color technology, Dolby & DTS audio support, stable signal regeneration, plug-and-play installation, and reliable multi-display performance, making it an excellent solution for professional HDMI signal distribution.
