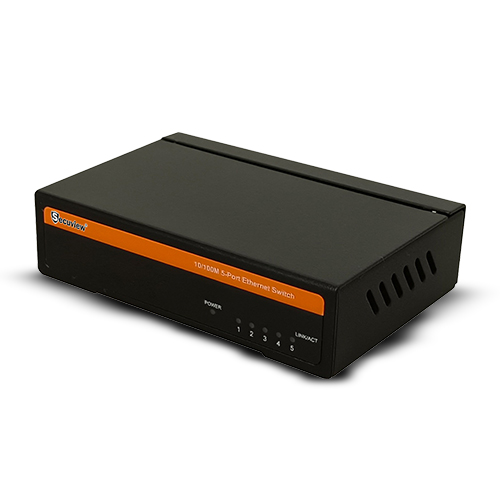

Secuview 5-Port Ethernet Switch Compact & High-Speed Networking
> Complies with IEEE802.3 / 802.3u / 802.3ab standards
> 5× 10/100Mbps RJ45 ports with Auto-MDI/MDIX.
> Supports 8K MAC addresses, EEPROM configuration, and stacking.
> IPv4 IGMP v1/v2/v3 & IPv6 MLD v1/v2 support.
> Full-duplex & half-duplex flow control, non-blocking wire-speed transmission.
> Mini desktop metal design with LED indicators.

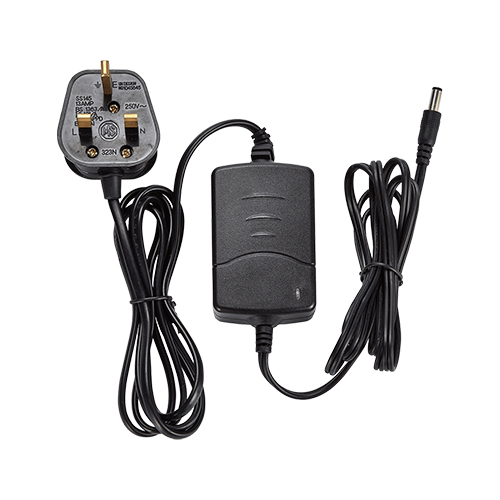

> External DC 5V 1A power supply.
Secuview 5-Port Ethernet Switch delivers compact, high-speed networking with stable 100Mbps connections, ideal for home and office setups.

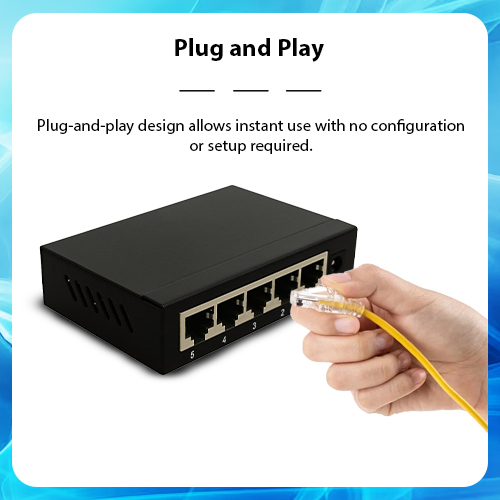

Plug and Play: Plug-and-play design allows instant use with no configuration setup required.

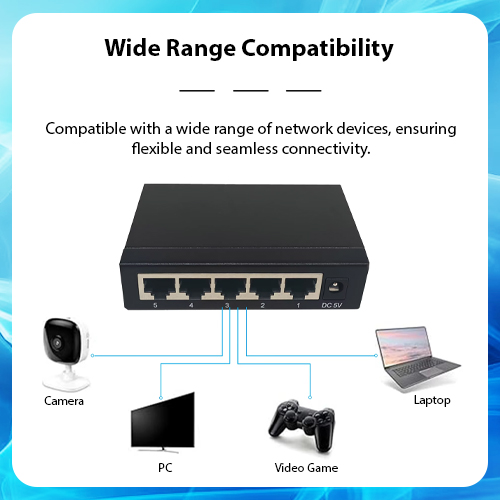

Wide Range Compatibility: Compatible with a wide range of network devices, ensuring flexible and seamless connectivity.

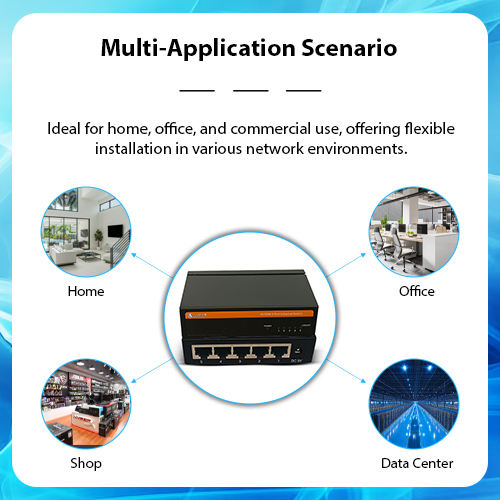

Multi-Application Scenario: Ideal for home, office, and commercial use, offering flexible installation in various network environments.

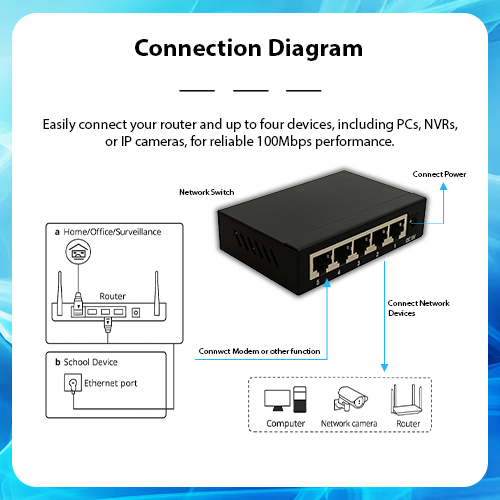

Connection Diagram: Easily connect your router and up to four devices, including PCs, NVRs, or IP cameras, for reliable 100Mbps performance.

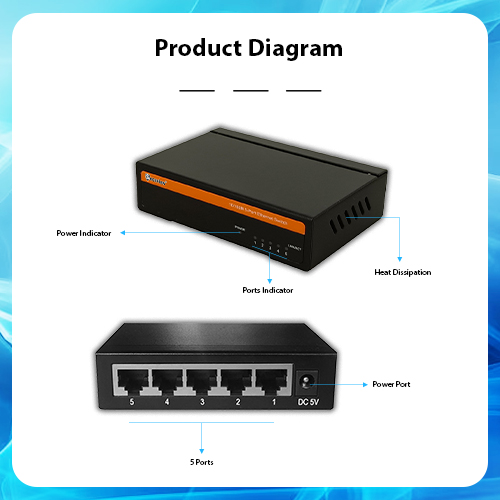

Product Diagram;
Dimensions;

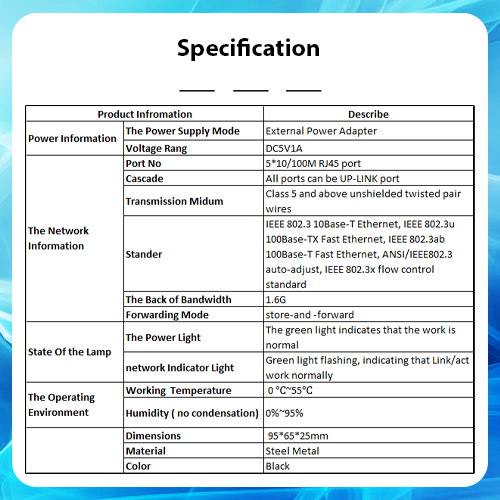

Specification;
Product Question & Answer
The Secuview 5-Port Ethernet Switch expands a single LAN connection into five network ports, allowing multiple wired devices to communicate on the same network. It is suitable for connecting desktop computers, laptops, printers, NVRs, IP cameras, smart TVs, and other Ethernet-enabled devices in homes and offices.
Yes. Its compact desktop design makes it ideal for home workstations, small offices, reception areas, retail stores, classrooms, meeting rooms, and CCTV control stations where additional wired network connections are required without installing a larger switch.
The switch features 5 auto-negotiating 10/100Mbps RJ45 ports, allowing connected devices to automatically operate at the highest supported network speed. Auto MDI/MDIX also eliminates the need for crossover Ethernet cables during installation.
Yes. The switch can connect NVRs, DVRs with network capability, IP cameras (powered separately), monitoring PCs, and network storage devices. It provides stable Ethernet communication for small surveillance systems that do not require Power over Ethernet (PoE).
No. The Secuview 5-Port Ethernet Switch is an unmanaged Plug-and-Play switch. Simply connect the power adapter, attach the Ethernet cables, and the switch automatically establishes communication between connected devices without any programming or configuration.
Reduced network speed can result from damaged Ethernet cables, poor RJ45 termination, outdated network adapters, or one connected device operating at a lower supported speed. Replacing the cable and verifying the network interface usually restores normal performance.
Yes. The Secuview 5-Port Ethernet Switch is suitable for homes, villas, apartments, offices, retail outlets, schools, clinics, cafés, warehouses, and small commercial premises throughout Doha, Lusail, Al Rayyan, Al Wakrah, Umm Salal, Mesaieed, and Al Khor, where reliable wired networking is required.
The switch complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards. It also supports 8K MAC address learning, full and half-duplex communication, IEEE 802.3x Flow Control, Back Pressure Flow Control, and non-blocking wire-speed forwarding for stable data transmission.
Its mini desktop metal enclosure allows installation on desks, shelves, TV cabinets, communication cabinets, or small office workspaces where installation space is limited. LED indicators also provide quick visual confirmation of power and network activity.
Most routers provide only a limited number of LAN ports. A 5-port Ethernet switch expands the wired network instantly, allowing additional devices to connect without replacing the existing router. This creates a more organized and scalable network while maintaining stable wired connectivity for business or home applications.
