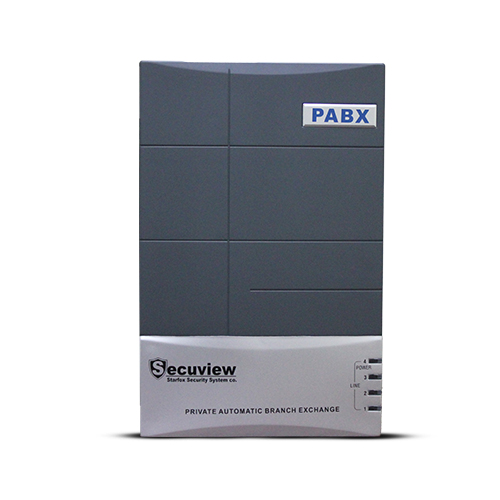

Secuview 8-Channel Smart PABX Seamless Communication Made Easy.
Power supply voltage: AC 220V or AC 110V,50-60Hze
Power dissipation: ≤20VAe
Exchange mechanism: Analog switch matrix
Caller lD receiving mode: DTMF & FSK
Caller lD sending mode: DTMF & FSK@
Type of telephone: Dual Tone Multi-Frequency
Dial mode: Tone frequency signal
Communications path: 7
Feed on Ext port: DC38V 20-30mA
IC Power Supply: ±5V
Distortion: ≤10%
Ringing Voltage: AC 70V±10% 50HZ
internal dial tone: 380HZ Continuous square wave
Internal ring back tone: 380HZ square wave 1s on, 4s off
Internal busy tone: 380HZ square wave 0.3s on, 0.3s off
Internal verification tone: 380HZ square wave 0.3s on, 0.3s off
CO line prompt tone: 380HZ square wave 2s on, 5s off
External music interface: input voltage rang 0.5V~2.0V
CO line tone: depend on service provider
Secuview 8-Channel Smart PABX delivers reliable, seamless communication with easy setup, ideal for small to medium businesses.

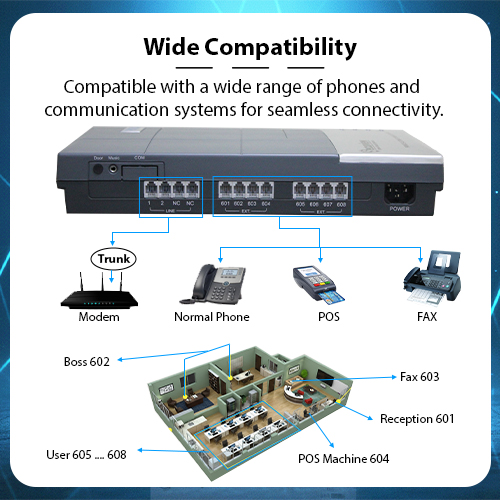

Wide Compatibility: Compatible with a wide range of phones and communication systems for seamless connectivity.

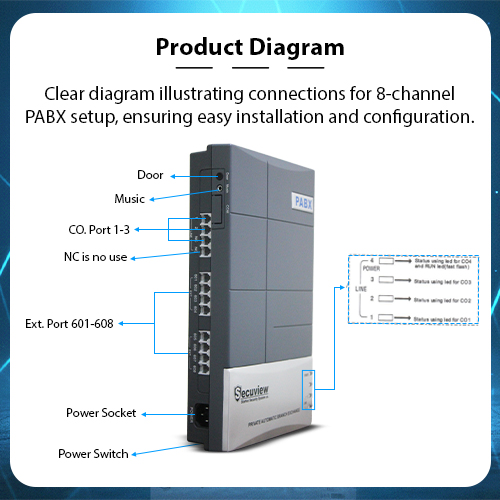

Product Diagram: Clear diagram illustrating connections for 8-channelPABX setup, ensuring easy installation and configuration.

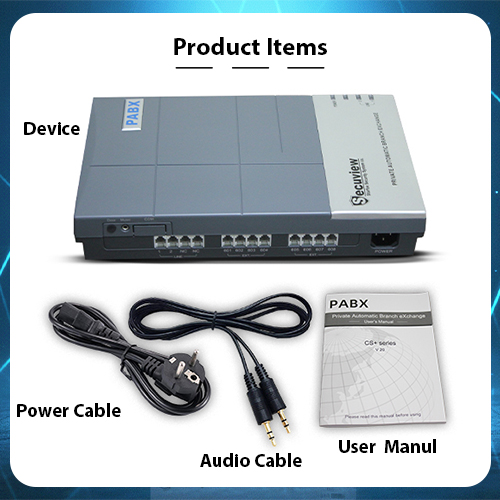

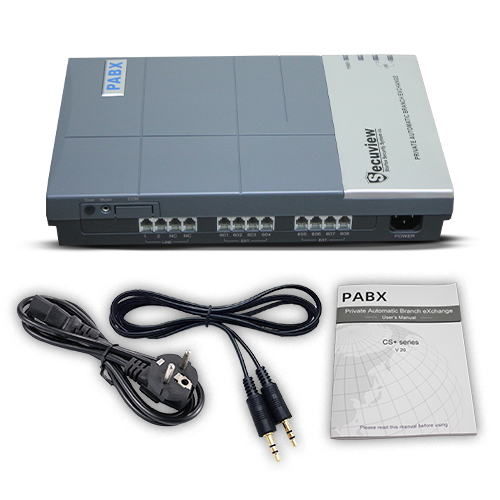

Product items:
- 8-Chennel PABX
- Power Cable
- Audio Cable
- User Manual

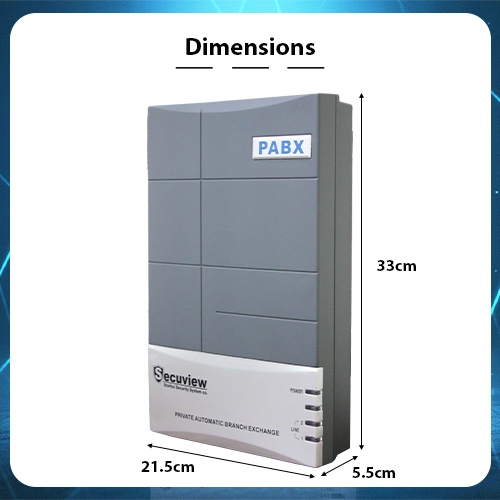

Dimensions:

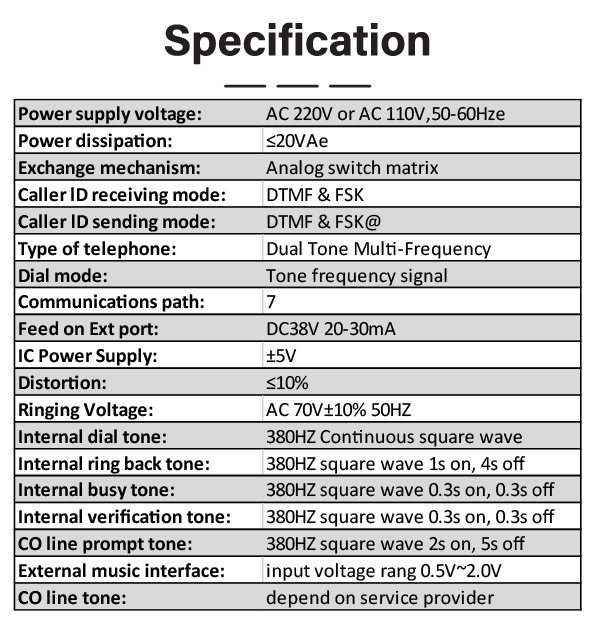

Specification:
Product Question & Answer
An 8-Channel Smart PABX is designed to simplify internal and external telephone communication for small businesses. It enables extension calling, call transfers, and shared telephone lines, making it suitable for offices, retail shops, clinics, restaurants, and startups that need organized business communication.
Yes. The Secuview 8-Channel Smart PABX is ideal for small offices that require multiple telephone extensions without investing in a larger communication system. It provides a cost-effective solution while supporting future business growth.
Yes. The system supports both DTMF and FSK Caller ID for sending and receiving caller information. When used with compatible analogue telephones, incoming caller details can be displayed to help improve customer service and call handling.
The Secuview 8-Channel Smart PABX is designed to work with Dual Tone Multi-Frequency (DTMF) analogue telephones. This allows businesses to continue using compatible desk phones without requiring specialized communication equipment.
Yes. The system includes an external music interface with an input voltage of 0.5V–2.0V, allowing businesses to connect a compatible audio source for music-on-hold or promotional messages during call waiting.
If incoming calls are not ringing correctly, check that the telephone line is active, extension wiring is properly connected, ringing settings are configured correctly, and compatible analogue telephones are being used. Incorrect installation or configuration can affect incoming call notifications.
Yes. The Secuview 8-Channel Smart PABX is suitable for offices, medical clinics, pharmacies, retail stores, restaurants, travel agencies, and professional service businesses across Doha, Lusail, Al Rayyan, Al Wakrah, and Al Khor, where reliable internal communication is essential.
The system operates on AC 110V–220V (50–60Hz) with power consumption of ≤20VA. It also provides DC38V (20–30mA) to extension ports and generates an AC 70V ±10% ringing voltage, ensuring stable communication for connected analogue telephones.
Yes. By allowing staff to transfer calls between extensions instead of asking customers to call different numbers, the Secuview 8-Channel Smart PABX helps reduce missed calls, shortens response times, and creates a more professional telephone experience for customers.
An 8-channel PABX is the better choice for businesses with fewer employees and limited extension requirements. It offers reliable business telephony without the additional capacity of larger systems, making it suitable for startups and small offices seeking an efficient communication solution.
