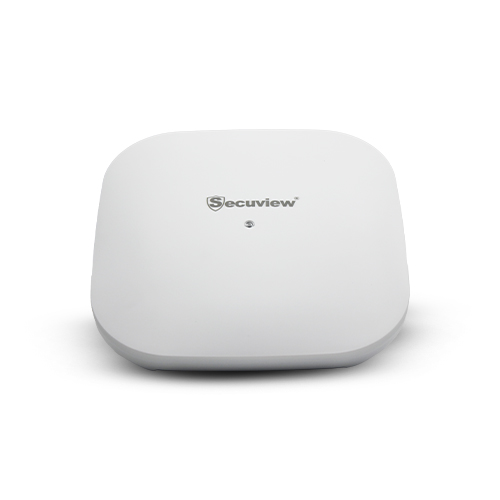

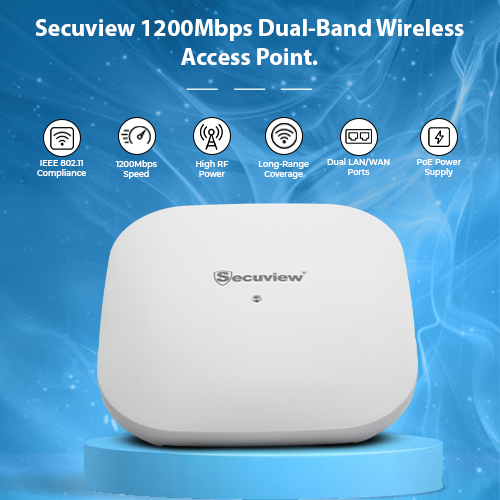

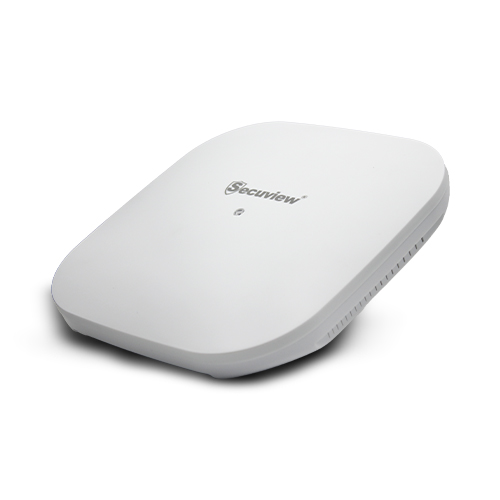

Secuview 1200Mbps Dual-Band Wireless Access Point.
Product Size:190*190mm
CPU: MT7628
Memories: FLASH 16M, DDR 256M
Protocols Comply: IEEE802.11b/g/n, IEEE802.3u, IEEE 802.3x
Wi-Fi: 2.4GHz：300Mbps, 2.412 GHz ~ 2.472 GHz (Channels 1~13) 5GHz：866Mbps, 5.180 GHz ~ 5.850 GHz (Channel 36~165)
TX Power: 2.4GHz: 100mW, 5GHz: 100mW
Ethernet Ports: 2x 10/100M LAN/WAN
Power Supply: DC 12V 1A, Passive POE 48V
Modulation Type: OFDM/BPSK/QPSK/DQPSK/DBPSK
Reset Button: 1x Reset button, Restore factory default settings
Antenna: 2.4G built-in 5dBi x 2PCS, 5.8G built-in 5dBi x 2PCS
LED Indicator: PWR, WAN
Working Temperature: 0°C~+55°C
Storage Temperature: -30°C~+80°C
Working Humidity: 10%~95% RH（non-condensation）
Storage Humidity: 10%~95% RH（non-condensation）
Enhance your network with the Secuview 1200Mbps Dual-Band Wireless Access Point. Enjoy fast, stable Wi-Fi connectivity with wide coverage, ideal for homes, offices, and commercial environments.
Wide Compatibility: The Secuview 1200Mbps Access Point offers broad device compatibility and ensures smooth, reliable Wi-Fi performance across your entire network.

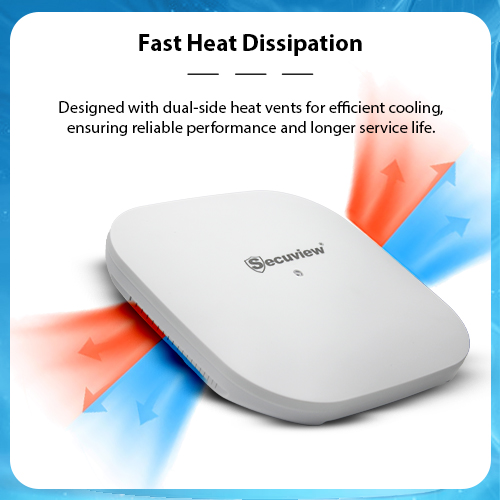

Fast Heat Dissipation: Designed with dual-side heat vents for efficient cooling, ensuring reliable performance and longer service life.

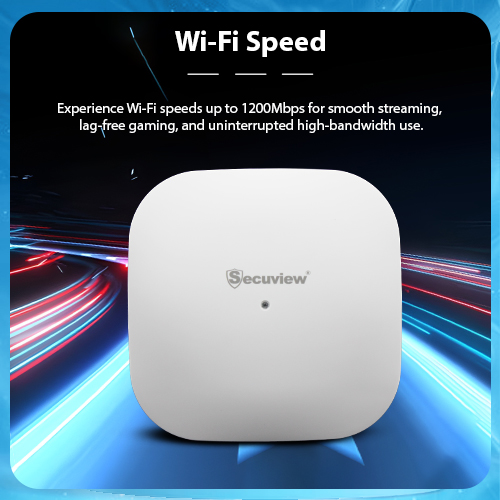

Wi-Fi Speed: Experience Wi-Fi speeds up to 1200Mbps for smooth streaming, lag-free gaming, and uninterrupted high-bandwidth use.

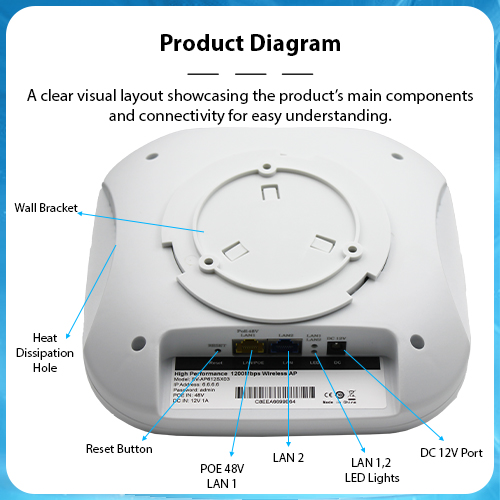

Product Diagram: A clear visual layout showcasing the product’s main components and connectivity for easy understanding.

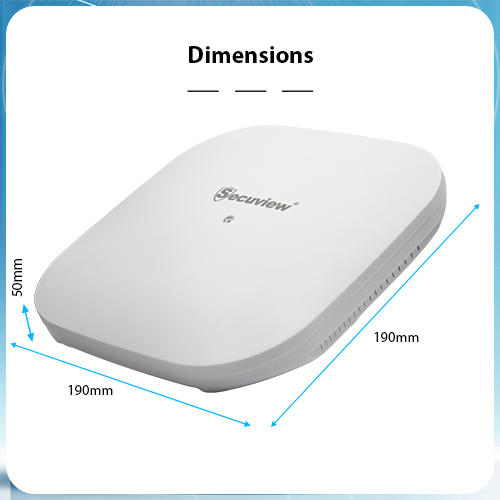

Dimensions:

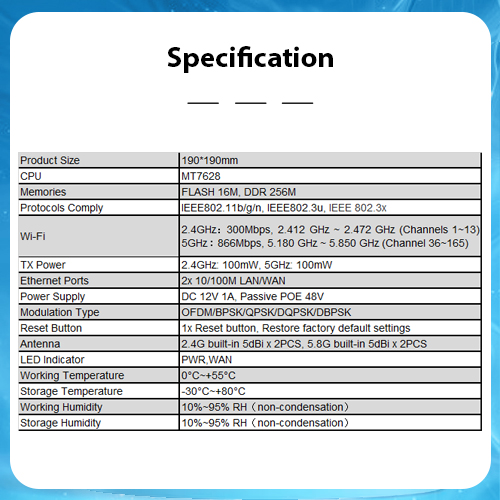

Specification:
Product Question & Answer
A wireless access point (AP) extends an existing network and provides additional Wi-Fi coverage in areas where the main router signal is weak. It is commonly used in villas, offices, warehouses, retail stores, hotels, and multi-room properties.
The Secuview 1200Mbps Access Point supports 2.4GHz and 5GHz wireless bands. The 2.4GHz band provides wider coverage, while the 5GHz band offers faster speeds for streaming, video calls, online gaming, and high-bandwidth devices.
A router creates and manages the internet connection, while an access point expands Wi-Fi coverage from an existing router or network. This makes an AP ideal for eliminating dead zones without replacing the main router.
Yes. The Secuview Dual-Band Access Point is designed to extend wireless coverage across multiple rooms, helping provide a stronger signal in larger apartments, villas, and office spaces where a single router may not reach effectively.
Yes. It can provide network connectivity for IP cameras, NVRs, smart switches, video doorbells, TVs, laptops, and other Wi-Fi devices, making it suitable for modern smart homes and business networks.
Yes. Multiple access points can be deployed throughout a property to create broader Wi-Fi coverage and support more connected devices, which is especially useful for offices, hotels, schools, and large villas.
Yes. The Secuview 1200Mbps Wireless Access Point is suitable for apartments, villas, offices, clinics, retail stores, and commercial spaces across Qatar where reliable Wi-Fi coverage is required.
For better performance, place the access point in a central location, avoid thick concrete walls and metal obstructions, and ensure it is connected properly to the existing network. Positioning often has a major impact on wireless coverage.
Yes. A dual-band 1200Mbps connection helps provide stable Wi-Fi for video conferencing, cloud applications, online learning, and everyday internet use when connected to a suitable broadband network.
Choose an access point when the main issue is coverage rather than internet speed. An AP extends Wi-Fi into weak-signal areas without replacing the existing router, often making it a more cost-effective solution for larger properties.
