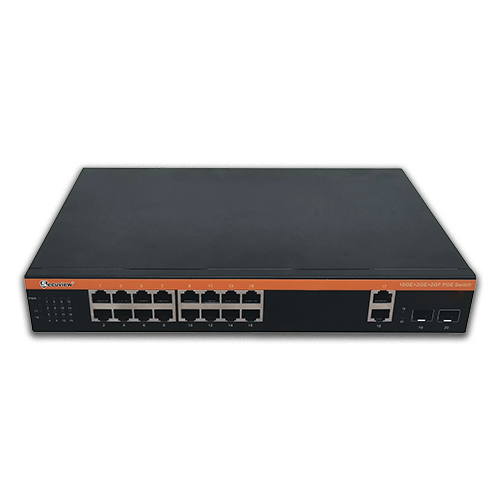

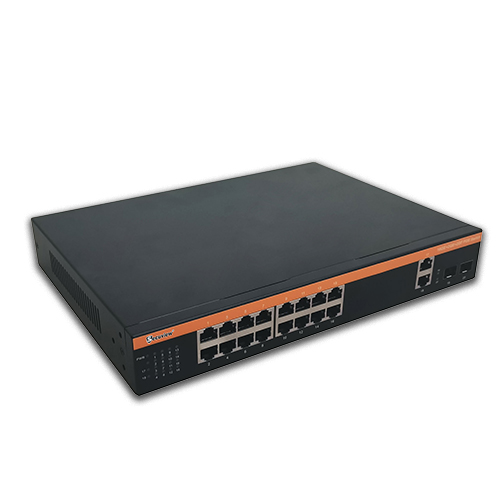

Secuview 16-Port Gigabit PoE switch 2 Uplink + 2 SFP |300W PoE Power.
* Complies with IEEE802.3 10/100/1000Mbps standards.
* Full/half duplex: IEEE 802.3x / Back Pressure.
* Ports support AutoMDI/MDIX.
* Lightning protection for stability.
* Supports fixed port VLANs (IEEE 802.1Q).
* Store-and-forward switching.
* Imported chips with heat dissipation.
* 1–2 uplink ports + 1–2 SFP (1.25Gbps).
* 20-port PoE switch with 16 adaptive PoE ports.
* Supports IEEE802.3af/at with 15.4/25.5W per port.

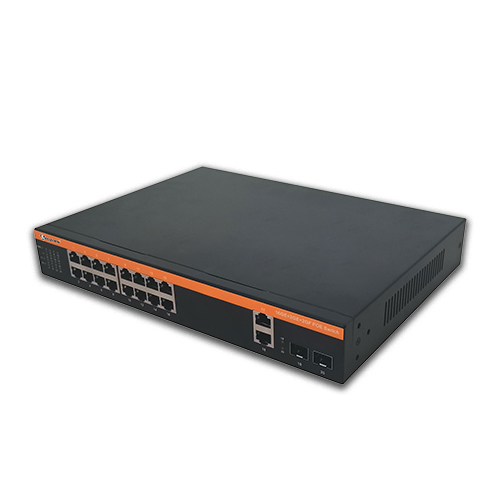

Secuview 16-Port Gigabit PoE Switch with 2 Uplink and 2 SFP ports, delivering 300W of reliable PoE power for fast, stable, and efficient network performance.
Main Features
Fanless Design Ensures Silent,
- Ultra-Quiet Performance
- Efficient Fanless Heat Dissipation
Plug & Play
- Plug-and-Play Simplicity
- Instant Operation on Connection
- Easy and Accessible for All Users
Multiple Device Compatibility:
Ensures seamless compatibility with various devices, providing flexible and reliable connectivity across your entire network.

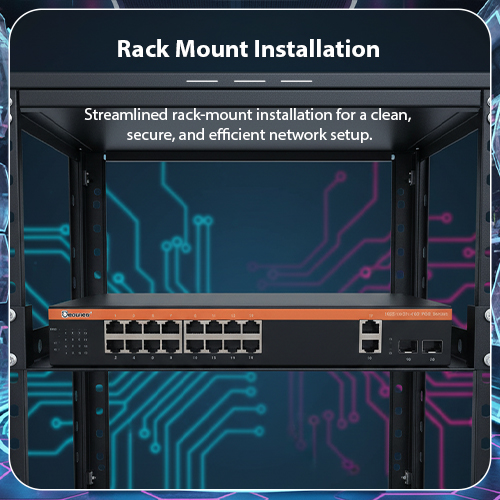

Rack Mount Installation:
Streamlined rack-mount installation for a clean secure, and efficient network setup.

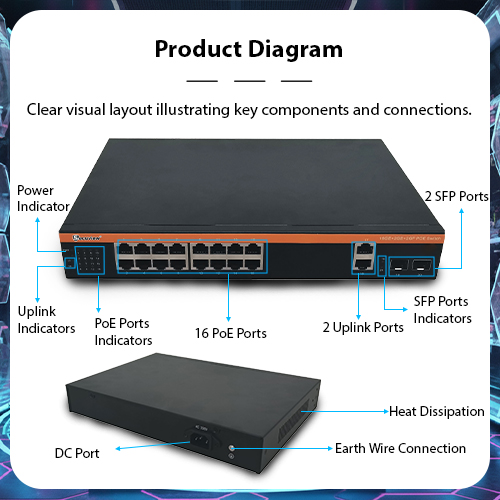

Product Diagram:
Clear visual layout illustrating key components and connections.

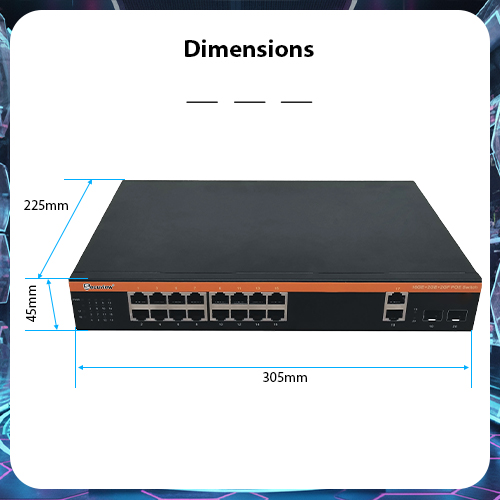

Dimensions:

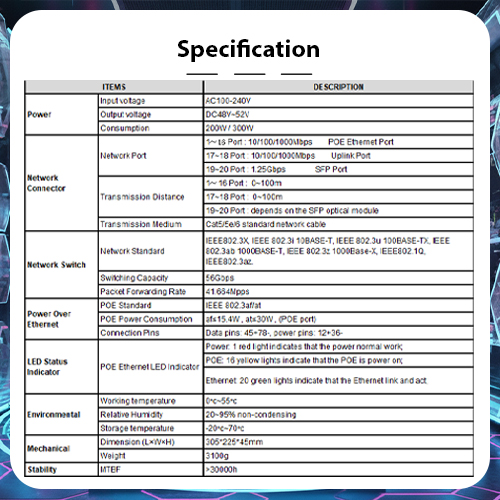

Specification:
Product Question & Answer
A 16-port Gigabit PoE switch is designed to provide both power and high-speed network connectivity to multiple PoE devices through a single Ethernet cable. The Secuview 300W PoE Switch is ideal for IP CCTV cameras, wireless access points, VoIP phones, access control systems, and enterprise surveillance networks that require reliable power distribution and fiber network expansion.
The dual 1.25Gbps SFP ports allow the switch to connect to fiber optic networks for longer transmission distances and higher backbone reliability. This is particularly useful when linking multiple buildings, server rooms, or remote surveillance cabinets without sacrificing Gigabit performance.
The switch offers a 300W total PoE power budget and supports up to 30W per PoE port under the IEEE 802.3af/at standards. This allows multiple high-power devices such as IP cameras and wireless access points to operate simultaneously from one switch.
Yes. With 16 Gigabit PoE ports, 2 Gigabit uplink ports, and 2 SFP fiber ports, the switch is designed for high-bandwidth surveillance applications, including 4MP, 5MP, 8MP, and 4K IP cameras, helping maintain smooth video transmission even when multiple cameras are operating at the same time.
Yes. The built-in Extend Mode allows supported PoE ports to transmit power and data up to 250 meters using Cat5e/Cat6 cable at reduced transmission speed. This makes it suitable for parking areas, perimeter fencing, warehouses, industrial compounds, and large commercial properties.
If a connected device is not detected, check the Ethernet cable quality, confirm that the device supports IEEE 802.3af/at PoE, verify that the total 300W PoE budget has not been exceeded, and inspect the RJ45 connectors for proper termination.
Yes. The Secuview 16-Port Gigabit PoE Switch is suitable for office buildings, hotels, schools, hospitals, warehouses, shopping centers, residential compounds, factories, and enterprise CCTV systems across Doha, Lusail, Al Rayyan, Al Wakrah, and Al Khor, where stable Gigabit connectivity and centralized PoE distribution are required.
The switch supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1Q VLAN, Auto MDI/MDIX, Store-and-Forward Switching, and delivers a 38Gbps switching capacity with a 26.784Mpps forwarding rate for efficient enterprise network performance.
Yes. It features a fanless metal enclosure, industrial heat-dissipation design, lightning protection, and rack-mount installation, making it suitable for continuous operation in security control rooms, IT cabinets, and professional network environments.
A switch with 2 Gigabit uplink ports and 2 SFP ports offers greater flexibility for network expansion, redundant backbone connectivity, and fiber integration. It helps organizations build scalable surveillance and business networks while reducing bottlenecks and simplifying future upgrades.
