Secuview 2 PoE Output + 1 Uplink PoE switch Extended 100M connectivity Range.
Function Item: Performance Metrics
Network Standard: IEEE802.3af / IEEE802.3at.
Network Medium: 10/100/1000BASE-TX:5 class and above non-shielded twisted pair
Data Distance: ≤100m
POE Power: ≤30W
Forwarding Rate: 10BASE-tx: 14880PPS/port; 100BASE-tx：148800pps/port
MAC Address: 1K
Port Function: Power priority mechanism, fast and forward, MAC automatic learning and aging; IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Packet Forwarding Rate: 0.74Mpps
Size: 94x45x27mm
Secuview 2 PoE Output + 1 Uplink PoE Switch delivers efficient power distribution and extended 100M transmission for smooth, stable network operations.

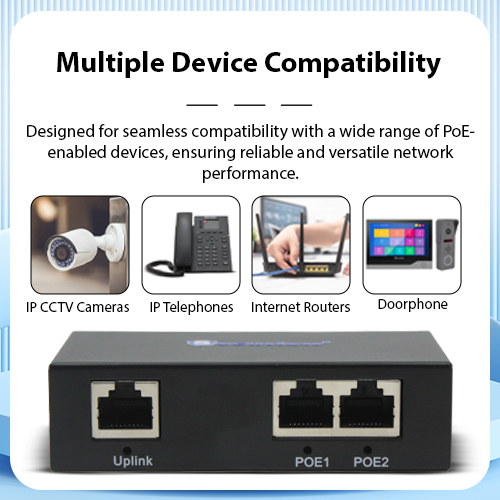

Multiple Device Compatibility:
Designed for seamless compatibility with a wide range of PoE-enabled devices, ensuring reliable and versatile network
performance.

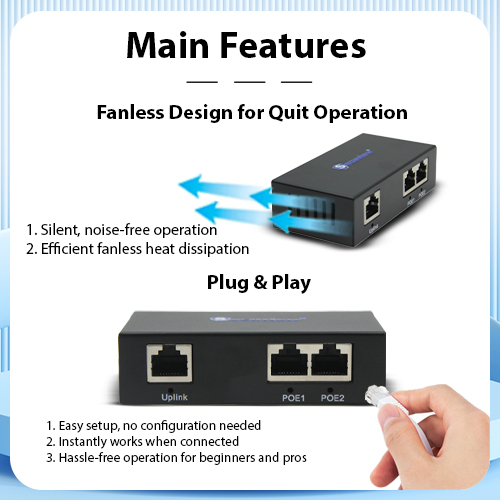

Main Features:
Fanless Design for Quit Operation
- Silent, noise-free operation
- Efficient fanless heat dissipation
Plug & Play
- Easy setup, no configuration needed
- Instantly works when connected
- Hassle-free operation for beginners and pros

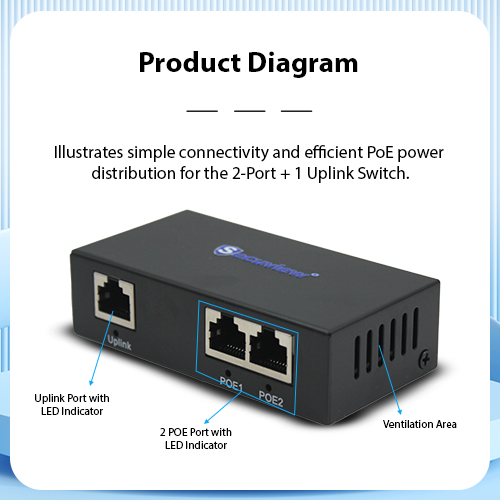

Product Diagram:
illustrates simple connectivity and efficient PoE power distribution for the 2-Port + 1 Uplink Switch.

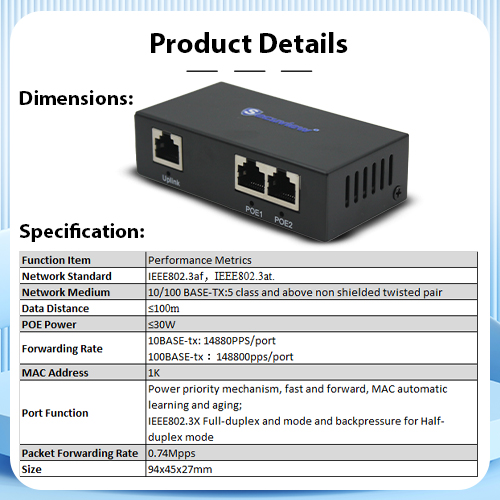

Product Details:
Product Question & Answer
The Secuview 2 PoE Output + 1 Uplink PoE Switch is designed for small IP networking applications where only a few PoE devices need to be connected. It powers devices such as IP cameras, wireless access points, and VoIP phones while transmitting data through the same Ethernet cable, making installation cleaner and more efficient.
A 2-port PoE switch is ideal for compact CCTV installations, home security systems, retail shops, reception areas, and small offices. It provides sufficient connectivity without the added cost, space, or power consumption of a larger network switch.
Each PoE output supports up to 30W, complying with IEEE 802.3af and IEEE 802.3at standards. This allows the switch to power compatible IP cameras, Wi-Fi access points, and other PoE-enabled network devices without requiring separate power adapters.
Yes. The switch supports 10/100/1000Mbps Ethernet, providing high-speed network communication while delivering stable PoE power. This makes it suitable for modern high-resolution IP cameras and bandwidth-intensive network devices.
Yes. The switch features a Plug-and-Play design that requires no software configuration. Simply connect the uplink cable, attach the PoE devices, and power on the switch. Network communication begins automatically, making installation quick for both professionals and first-time users.
If a connected device does not receive power, check whether it supports IEEE 802.3af/at PoE, inspect the Ethernet cable for damage, verify the RJ45 connectors, and confirm that the connected device does not exceed the 30W maximum output per port.
Yes. The Secuview 2-Port PoE Switch is suitable for homes, villas, apartments, retail stores, reception desks, offices, cafés, clinics, and small business security systems throughout Doha, Lusail, Al Rayyan, Al Wakrah, Umm Salal, and Al Khor, where a compact and reliable PoE solution is required.
The switch includes automatic MAC address learning, MAC aging, IEEE 802.3X Flow Control, Auto MDI/MDIX, and Fast Store-and-Forward switching, helping maintain reliable data transmission while reducing packet loss across connected devices.
Yes. The fanless cooling design enables completely silent operation while reducing dust accumulation and mechanical wear. This makes the switch suitable for offices, homes, reception areas, meeting rooms, and other quiet indoor environments.
The combination of 2 PoE output ports, 1 dedicated uplink port, Gigabit networking, 30W PoE output, and a compact 94 × 45 × 27 mm enclosure makes this switch an efficient solution for expanding small CCTV systems without increasing wiring complexity or installation costs.
