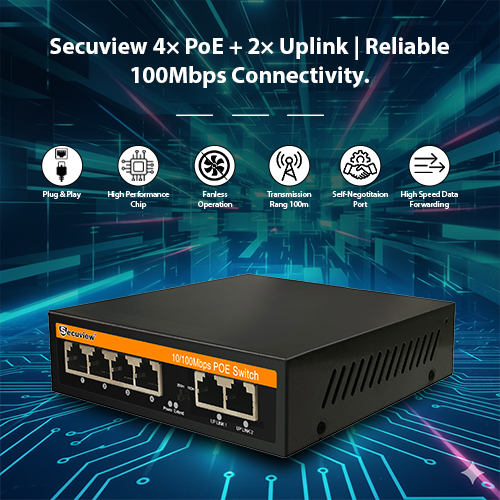

Secuview 4x PoE + 2x Uplink | Reliable100Mbps Connectivity.
* Supports full IEEE802.3af/at standard.
* Provides Ethernet data transmission and power over a single cable.
* Auto-detects and identifies compatible PD devices.
* Port power priority ensures continuous supply at gateways.
* Short-circuit protection stops power if current is too high or PD fails.
* Energy-saving features: auto-standby and optimized power for cables under 10 meters.
Secuview 4× PoE + 2× Uplink Switch delivers reliable 100Mbps connectivity with stable power and data for seamless PoE network performance.
Main Features:

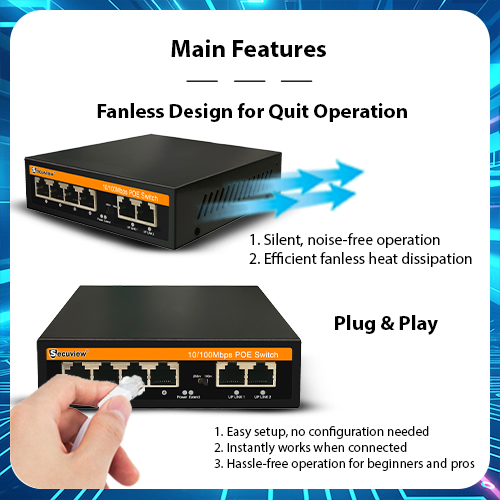

Fanless Design for Quit Operation:
- Silent, noise-free operation
- Efficient fanless heat dissipation
Plug & Play
- Easy setup, no configuration needed
- Instantly works when connected
- Hassle-free operation for beginners and pros

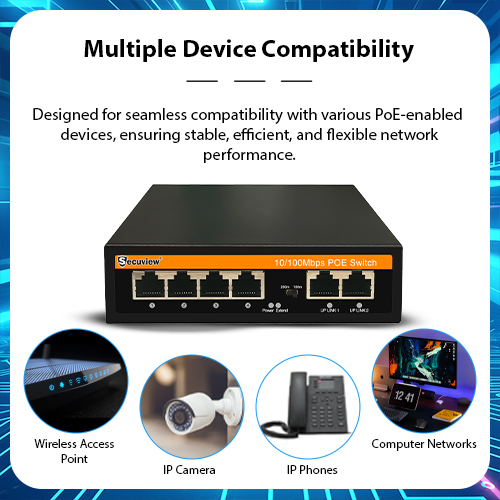

Multiple Device Compatibility: Designed for seamless compatibility with various PoE-enabled devices, ensuring stable, efficient, and flexible network performance.

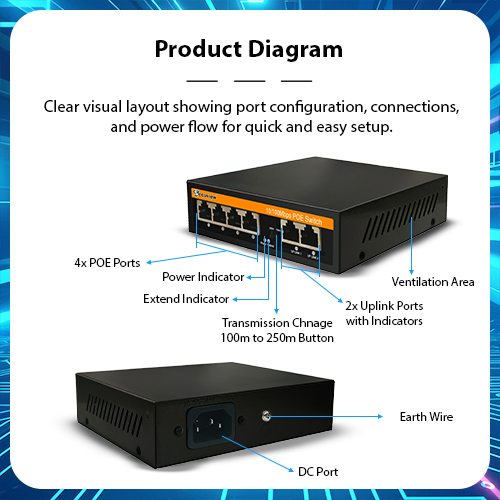

Product Diagram: Clear visual layout showing port configuration, connections, and power flow for quick and easy setup.

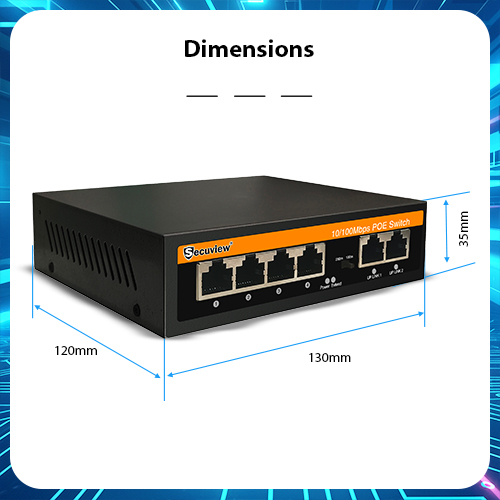

Dimensions:

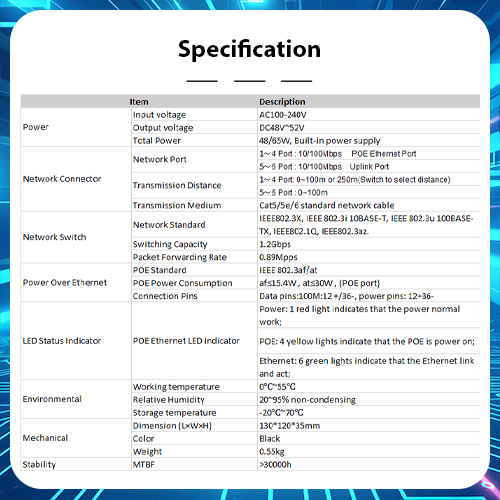

Specification:
Product Question & Answer
The Secuview 4× PoE + 2× Uplink Switch is designed to power and connect up to four PoE-enabled devices while providing two dedicated uplink ports for connecting to an NVR, router, or another network switch. It is ideal for small CCTV systems, retail stores, offices, schools, and home security installations.
The dual uplink ports provide greater flexibility for network expansion. One uplink can be connected to an NVR while the second connects to a router or another switch, allowing surveillance traffic and network communication to be managed more efficiently without sacrificing any PoE ports.
This switch complies with IEEE 802.3af and IEEE 802.3at standards, automatically detecting compatible powered devices and supplying the appropriate amount of power. It supports IP cameras, wireless access points, VoIP phones, access control systems, and other standard PoE equipment.
The switch supports reliable 10/100Mbps Ethernet transmission up to 100 meters using Cat5e or Cat6 network cable. This distance is suitable for most CCTV and structured cabling installations in residential and commercial environments.
No. The Secuview 4× PoE + 2× Uplink Switch operates as a Plug-and-Play unmanaged switch, allowing installers to connect devices and begin operation immediately without configuring IP settings or installing management software.
A camera may restart if the Ethernet cable is damaged, the RJ45 connector is poorly crimped, the connected device exceeds the available PoE power, or a non-standard PoE device is connected. Replacing the cable and verifying IEEE 802.3af/at compatibility usually resolves the issue.
Yes. The Secuview 4× PoE + 2× Uplink Switch is suitable for villas, apartments, retail shops, cafés, offices, clinics, schools, warehouses, and small commercial buildings across Doha, Lusail, Al Rayyan, Al Wakrah, Umm Salal, Mesaieed, and Al Khor, where reliable 10/100Mbps PoE networking is required.
The switch features a fanless cooling system that operates silently while reducing dust accumulation and mechanical wear. This design improves long-term reliability and makes it suitable for quiet environments such as offices, classrooms, reception areas, and indoor surveillance cabinets.
The switch includes port power priority, automatic PD detection, short-circuit protection, and overload protection. These features help protect both the switch and connected PoE devices while maintaining stable network operation.
Unlike a standard Ethernet switch, this model supplies both network data and electrical power through a single cable, reducing installation costs and eliminating separate power adapters. The dual uplink design also provides greater flexibility when connecting surveillance systems to an NVR and the main network simultaneously.
