Secuview 8CH 4K NVR |Ultra HD | ONVIF Support | High-Speed Performance
| Model | SVN-4K801P |
| Video/Audio Input | |
| IP Video Input | 8-ch |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 1 x USB2.0,1 x USB3.0 |
| RS232 | NA |
| RS485 | NA |
| Alarm In | NA |
| Alarm Out | NA |
| PoE | |
| Interface | 8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power | Max 30W for single port
Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Power Supply | 52V DC |
| Power Consumption: ≤8 W (without HDD) | |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 260mm × 240mm × 45mm (10.2″×9.4″×1.9 “) |
| Weight (without HDD) | ≤1kg (2.20 lb) |

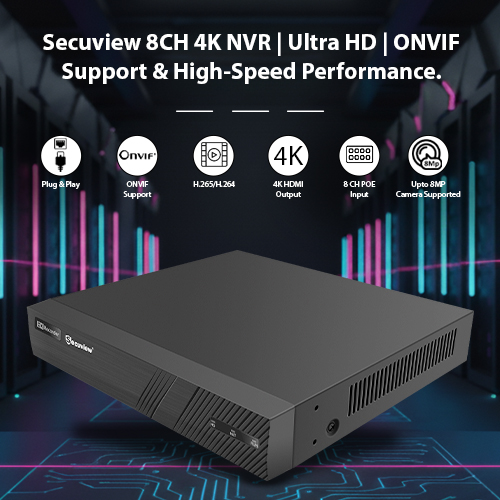

Secuview 8CH 4K NVR delivers ultra-HD recording, fast performance, and full ONVIF support for reliable, seamless surveillance.

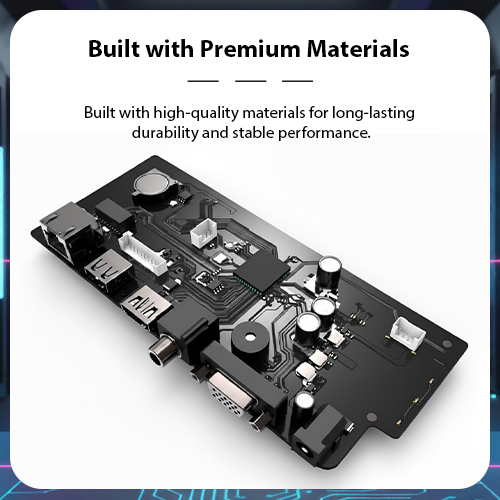

Built with Premium Materials: Built with high-quality materials for long-lasting durability and stable performance.
Remote Monitoring, Anytime, Anywhere: Keep an eye on your home or office anytime, anywhere through GUARD VIEWER.

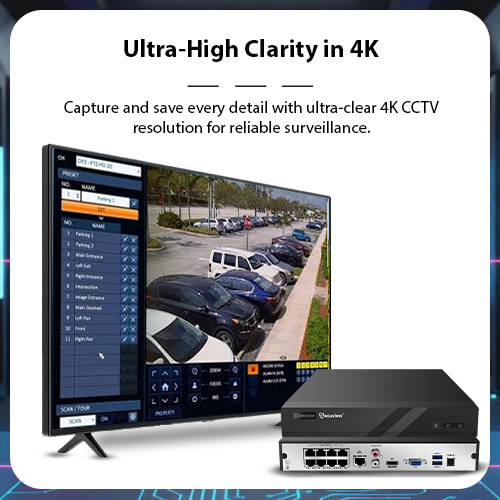

Ultra-High Clarity in 4K: Capture and save every detail with ultra-clear 4KCCTVresolution for reliable surveillance.

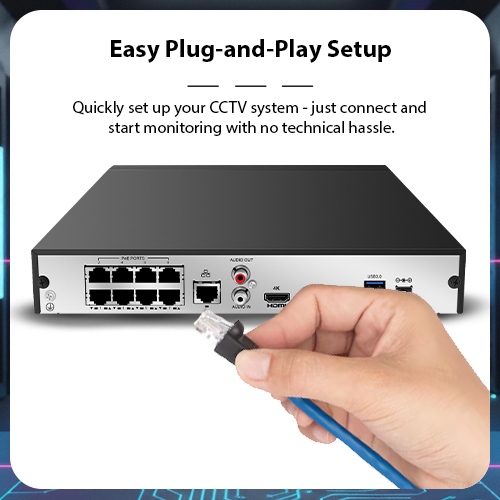

Easy Plug-and-play Setup: Quickly set up your CCTV system – just connect and start monitoring with no technical hassle.
Multi-Scenario Application: Versatile CCTV solution suitable for homes, offices, shops, and factories secure every space effortlessly

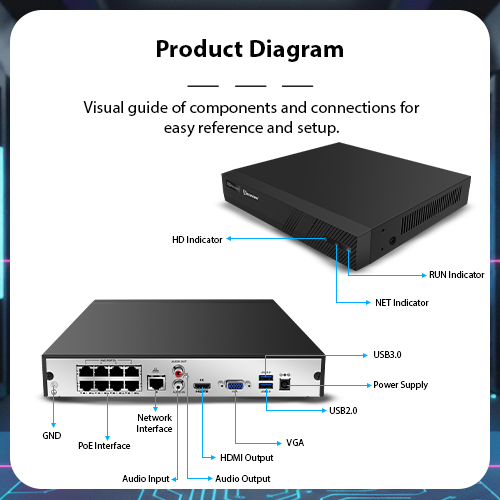

Product Diagram: Visual guide of components and connections for easy reference and setup.
Dimensions:

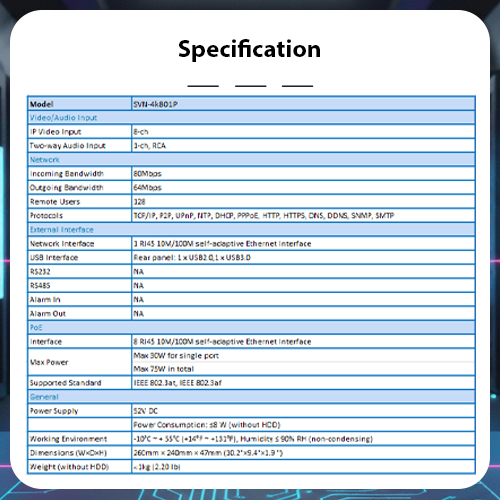

Specification:
Product Question & Answer
An 8-channel PoE NVR combines video recording, network connectivity, and camera power into a single device. With 8 built-in PoE ports, it allows compatible IP cameras to connect using one Ethernet cable for both power and data, making installation faster and reducing additional networking equipment.
Yes. The Secuview 8CH 4K NVR is suitable for villas, apartments, offices, retail shops, restaurants, schools, and small commercial properties throughout Doha, Lusail, Al Rayyan, Al Wakrah, and across Qatar. It supports professional IP surveillance with reliable local recording.
Yes. The integrated PoE (Power over Ethernet) ports deliver power and network connectivity through a single cable, reducing installation time, cable clutter, and the need for separate power adapters for each compatible IP camera.
Yes. The recorder supports ONVIF Profiles S, G, and T, along with RTSP, allowing integration with many compatible IP cameras from different manufacturers. This provides greater flexibility when upgrading or expanding your surveillance system.
Yes. After connecting the NVR to the internet, you can access live video, recorded footage, and system management features using the compatible Guard Viewer mobile application, allowing remote monitoring from almost anywhere.
Yes. Recording continues directly to the installed hard drive as long as the connected cameras and local network remain operational. Internet access is only required for remote viewing, mobile notifications, and cloud-based services.
Yes. The recorder supports 4K Ultra HD (3840 × 2160) HDMI output and high-resolution recording when paired with compatible IP cameras. It also supports Ultra 265, H.265, and H.264 compression to help maximize storage efficiency while maintaining excellent image quality.
The Secuview 8CH 4K NVR supports one SATA hard drive with capacities of up to 8TB, providing ample storage for continuous video recording depending on camera resolution, recording schedule, and compression settings.
You can purchase the Secuview 8CH 4K NVR with built-in PoE directly from Secuview Qatar, with local stock, manufacturer warranty, delivery throughout Qatar, and professional support for CCTV system installation and upgrades.
Before purchasing an 8-channel PoE NVR in Qatar, consider the number of cameras you plan to install, required recording resolution, PoE requirements, storage capacity, ONVIF compatibility, remote viewing features, and whether you intend to expand your CCTV system in the future. Choosing the right NVR ensures reliable performance and easier system management.
