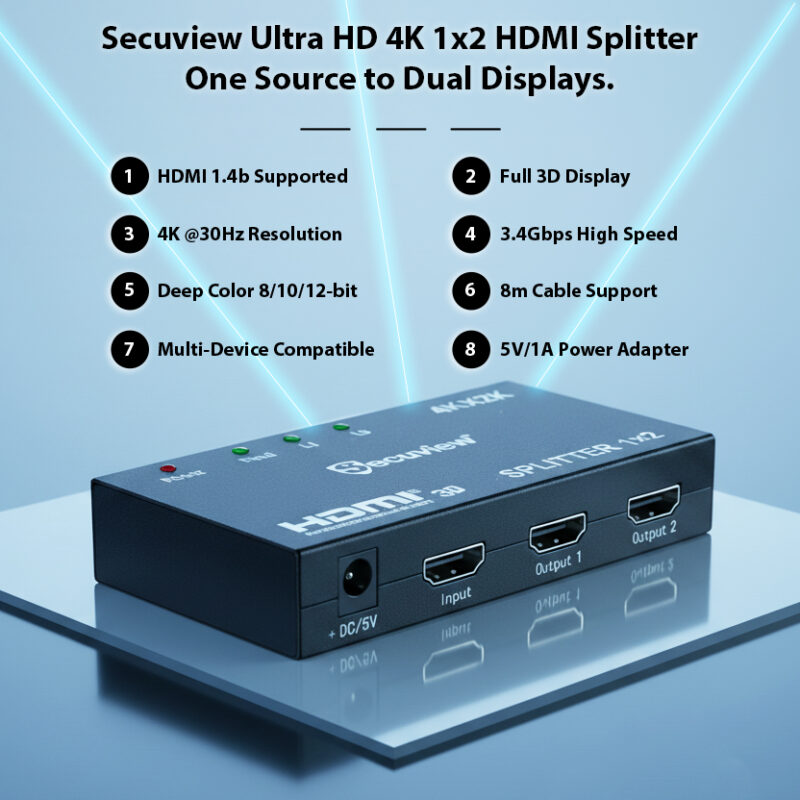

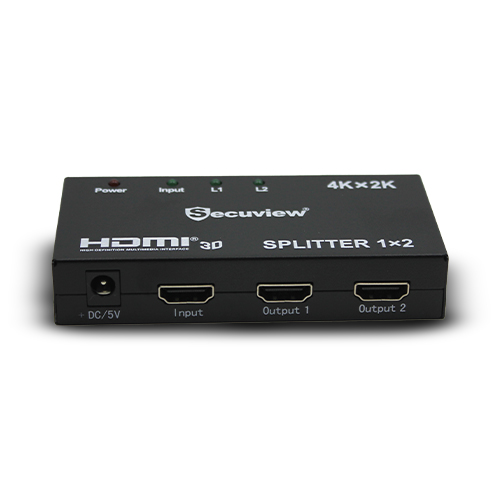

Secuview Ultra HD 4K 1×2 HDMI Splitter | One Source to Dual Displays.
HDMI version: HDMI 1.4b
HDMI Resolution: Up to 3840×2160/30Hz
Support video format: 8/10/12bit Deep color
Support Audio format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
Max bandwidth: 340MHz
Max baud rate: 3.4Gbps
Input cable distance: 8m WG26 HDMI standard cable
Output cable distance: 8m WG26 HDMI standard cable
HDMI input: 1 HDMI
HDMI Output: 2 HDMI
Max Working Current: 500mA
Specification of Power Adapter: input AC (50Hz, 60Hz)100V-240V; output: DC5V/1A
Operating Temperature range: (-15℃to +55℃)
Operating Humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 105x50x20(mm)
Weight: 120g
Secuview 1×2 HDMI Splitter allows a single HDMI source to connect to two displays or projectors, supporting resolutions up to 4K (3840×2160 @30Hz) with stable signal transmission.
Ultra HD 4K Resolution: Supports 4K Ultra HD resolution up to 3840×2160 @30Hz for sharp, vibrant visuals.
Connection & Operation: Connect the HDMI source and displays, then power with the 5V adapter for smooth operation.

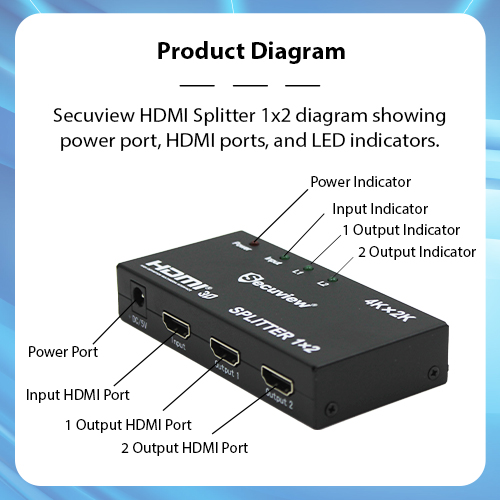

Product Diagram:
Secuview HDMI Splitter 1×2 diagram showing power port, HDMI ports, and LED indicators.
Indicators:
- Power Indicator
- Input indicator
- Outputs Indicator
Ports
- Power Port
- Input HDMI Port
- Output HDMI Ports

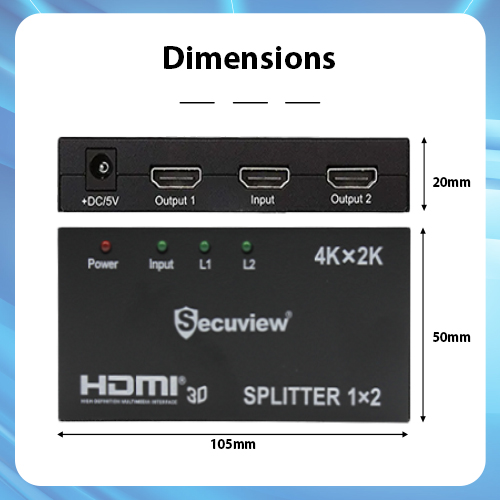

Dimension:
Specification:
Product Question & Answer
A 1×2 HDMI splitter allows you to duplicate a single HDMI source onto two displays simultaneously without reducing video quality. The Secuview Ultra HD 4K 1×2 HDMI Splitter supports 4K Ultra HD resolution up to 3840 × 2160 @30Hz, making it ideal for TVs, monitors, projectors, digital signage, CCTV monitoring, classrooms, meeting rooms, and entertainment systems.
Yes. The Secuview 1×2 HDMI Splitter mirrors a single HDMI input to two HDMI displays at the same time. Both connected displays show the same video and audio content, making it suitable for presentations, surveillance monitoring, retail displays, and home entertainment.
Yes. The splitter supports Ultra HD resolutions up to 3840 × 2160 @30Hz, delivering sharp images, vibrant colors, and clear video playback. It also supports 8-bit, 10-bit, and 12-bit Deep Colors for improved visual performance.
The Secuview 1×2 HDMI Splitter supports multiple high-quality audio formats, including:
- DTS-HD
- Dolby TrueHD
- DTS
- Dolby AC3
- DSD
This ensures synchronized, high-quality audio alongside the video output.
Yes. Installation is completely plug-and-play. Simply connect your HDMI source to the splitter, connect two displays to the HDMI output ports, and power the splitter using the included DC 5V adapter. No software or driver installation is required.
The splitter works with many HDMI devices, including:
- DVRs and NVRs
- CCTV monitoring systems
- Desktop computers
- Laptops
- Gaming consoles
- Blu-ray players
- Streaming devices
- Media players
- TVs
- Projectors
- Monitors
It is compatible with HDMI devices supporting resolutions up to 4K UHD.
The Secuview Ultra HD 4K 1×2 HDMI Splitter is widely used in homes, offices, meeting rooms, shopping malls, retail stores, schools, universities, hotels, restaurants, exhibition halls, security control rooms, CCTV monitoring centers, and digital signage installations across Doha, Lusail, Al Rayyan, Al Wakrah, Mesaieed, and Al Khor, where one HDMI source needs to be displayed on two screens simultaneously.
No. The splitter is designed to maintain stable digital signal transmission, preserving image clarity and audio quality while duplicating the HDMI signal to both displays. When used within the recommended cable lengths, it delivers reliable 4K performance.
Yes. Its 4K UHD support, HDMI 1.4b compatibility, Deep Colors support, high-definition audio compatibility, stable signal transmission, and plug-and-play installation make it suitable for residential, commercial, educational, hospitality, and professional surveillance applications.
The Secuview Ultra HD 4K 1×2 HDMI Splitter combines 4K Ultra HD resolution, one HDMI input with two simultaneous outputs, high-definition audio support, plug-and-play installation, stable signal transmission, compact design, and wide device compatibility, making it an ideal solution for duplicating HDMI content across two displays with excellent picture and sound quality.
