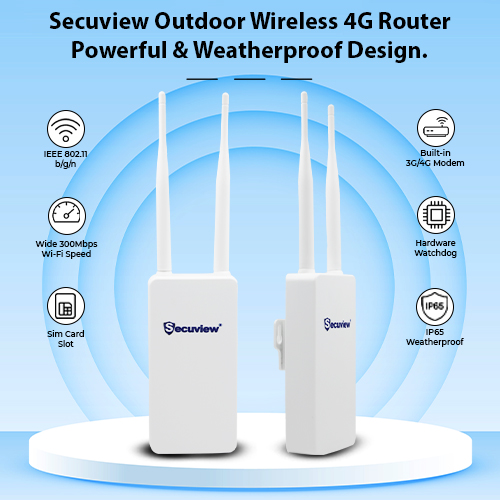

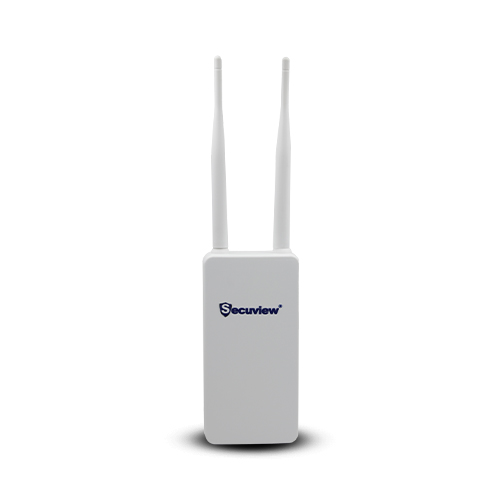

Secuview Outdoor Wireless 4G Router | Powerful & Weatherproof Design.
| Product Size | 153*78*34mm |
| CPU | MT7628; 580MHz |
| Memories | FLASH 8M, DDR 64M |
| Protocols Comply | IEEE802.11b/g/n, IEEE802.3u, IEEE 802.3x |
| Wi-Fi | 2.4GHz：300Mbps, 2.412 GHz ~ 2.472 GHz (Channels 1~13) |
| TX Power | 2.4GHz: 100mW |
| Ethernet Ports | 1x 10/100M WAN 1x 10/100M LAN |
| 4G Modem | LTE CAT4 MIMO 2*2, Maximum downlink150Mbps and uplink 50Mbps |
| Power Supply | DC 12V 1A, Passive POE 24V 0.5A |
| SIM Slot | 1, Standard 25*15mm |
| Reset Button | 1x Reset button, Restore factory default settings |
| Antenna | 2.4G internal 5dBi x 2PCS, 4G external 5dBi x 2PCS |
| LED Indicator | PWR, LAN, 4G, 2.4G |
| Working Temperature | -10°C~+55°C |
| Storage Temperature | -40°C~+70°C |
| Working Humidity | 10%~90% RH（non-condensation） |
| Storage Humidity | 10%~90% RH（non-condensation） |
Stay connected anywhere with the Secuview Outdoor 4G Router. Powerful, weatherproof, and easy to install – perfect for stable high-speed wireless performance.

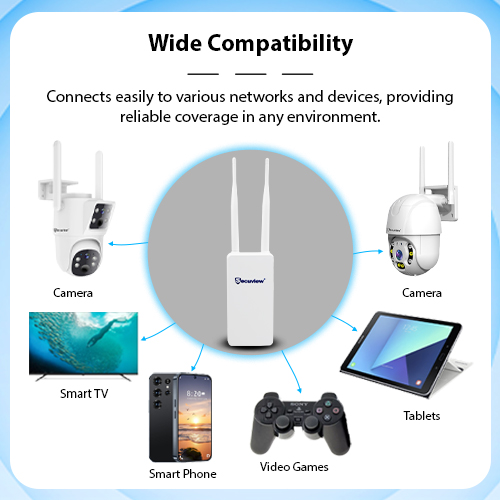

Wide Compatibility: Connects easily to various networks and devices, providing reliable coverage in any environment.

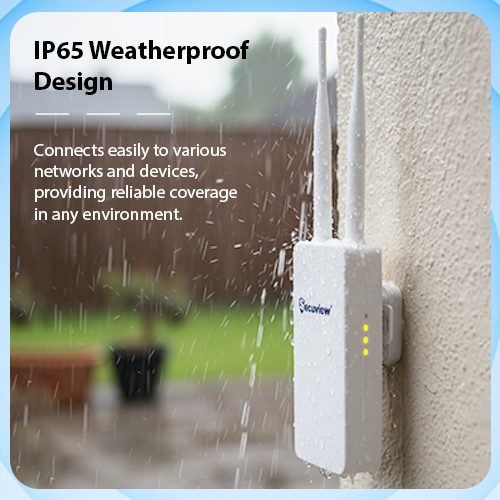

IP65 Weatherproof Design: Connects easily to various networks and devices, providing reliable coverage in any environment.

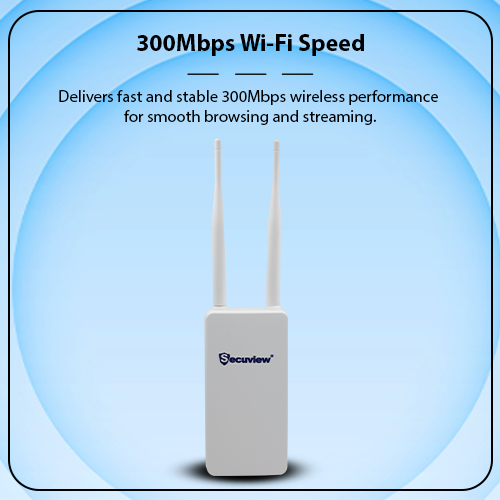

300Mbps Wi-Fi Speed: Delivers fast and stable 300Mbps wireless performance for smooth browsing and streaming.
Product Diagram: Shows all connection points and hardware design for quick understanding.

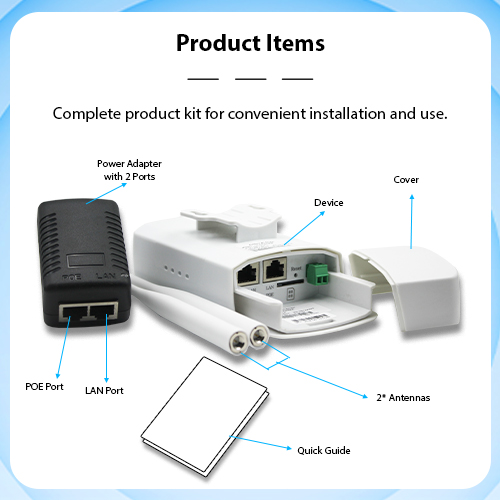

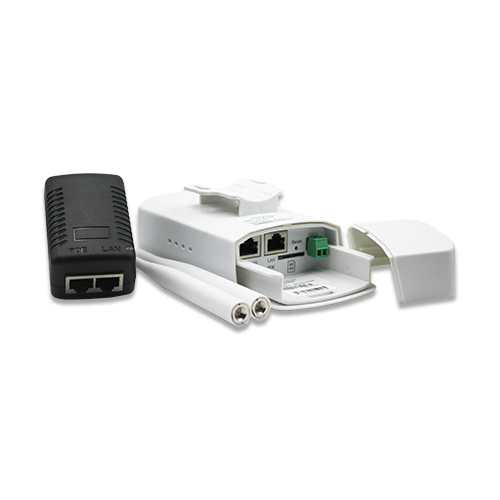

Product items: Complete product kit for convenient installation and use.

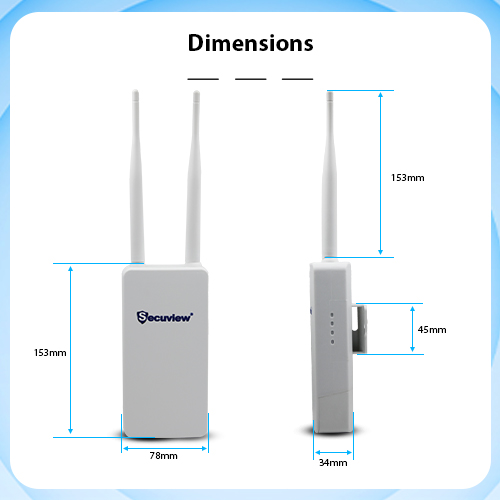

Dimensions:

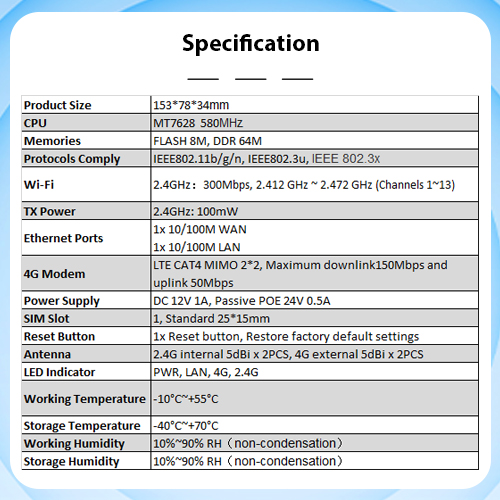

Specification:
Product Question & Answer
An Outdoor Wireless 4G Router provides internet access using a 4G LTE SIM card while being installed outside the building for stronger mobile signal reception. It is ideal for farms, construction sites, CCTV installations, warehouses, remote offices, parking areas, and locations where indoor signal strength is limited.
Installing the Secuview Outdoor Wireless 4G Router outside helps it receive a stronger LTE signal from nearby mobile towers. This can improve internet stability and reduce signal loss caused by thick walls, concrete structures, or metal roofing.
Yes. The Secuview Outdoor Wireless 4G Router features an IP65 weatherproof enclosure, making it suitable for outdoor installations exposed to rain, dust, humidity, and Qatar’s challenging outdoor climate.
Yes. The router supports a standard 4G LTE SIM card and can be used with compatible mobile data services from Ooredoo Qatar and Vodafone Qatar, allowing fast internet access wherever LTE coverage is available.
Yes. The Secuview Outdoor 4G Router supports 24V Passive PoE, allowing power and network connectivity through a single Ethernet cable. This simplifies installation on poles, rooftops, exterior walls, and other outdoor mounting locations.
Yes. The router can supply internet connectivity for IP cameras, NVR systems, access control devices, smart gates, and other network equipment, making it suitable for outdoor surveillance projects where fiber broadband is unavailable.
Yes. The Secuview Outdoor Wireless 4G Router is designed for outdoor deployments across Doha, Lusail, Al Rayyan, Al Wakrah, Al Khor, and other areas of Qatar. Its weatherproof housing and LTE connectivity make it suitable for villas, industrial sites, farms, security installations, and remote locations.
The router supports 2.4GHz Wi-Fi with speeds up to 300Mbps and uses LTE Cat 4 technology, offering download speeds of up to 150Mbps and upload speeds of up to 50Mbps, depending on network conditions and mobile operator coverage.
Yes. The Secuview Outdoor Wireless 4G Router is designed to operate in temperatures ranging from -10°C to +55°C, making it suitable for year-round outdoor networking in Qatar when installed according to the manufacturer’s recommendations.
Choose an Outdoor Wireless 4G Router when mobile signal strength is weak inside the building or when internet is required in outdoor environments without fiber infrastructure. Outdoor installation often provides better LTE reception, resulting in more stable connectivity for security systems, remote monitoring, and business operations.
