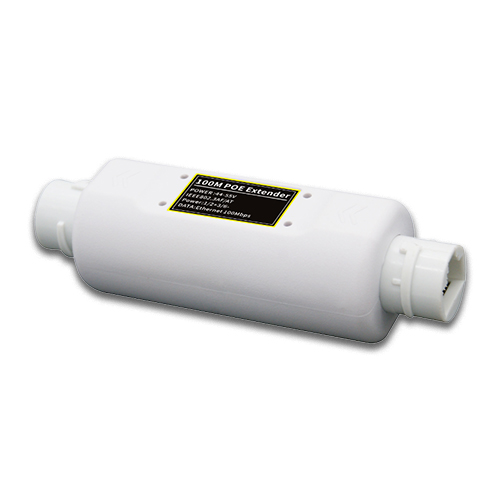

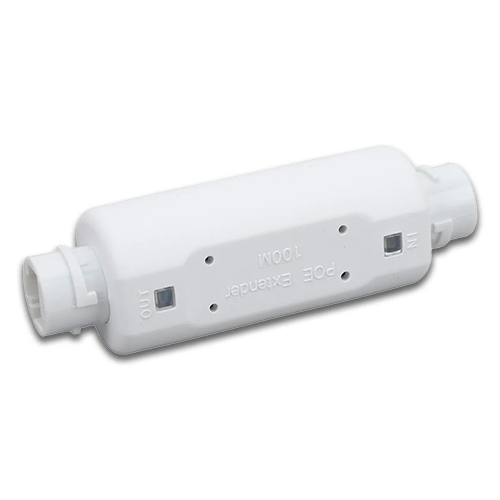

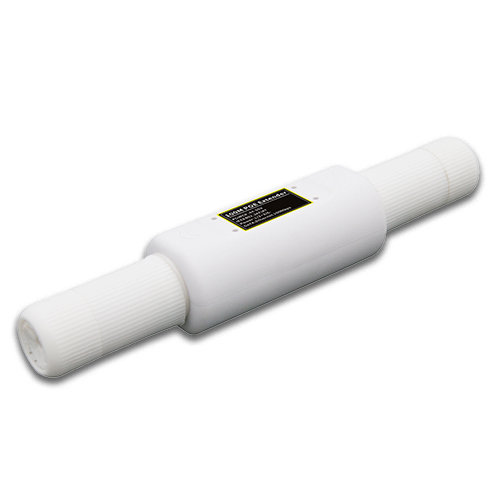

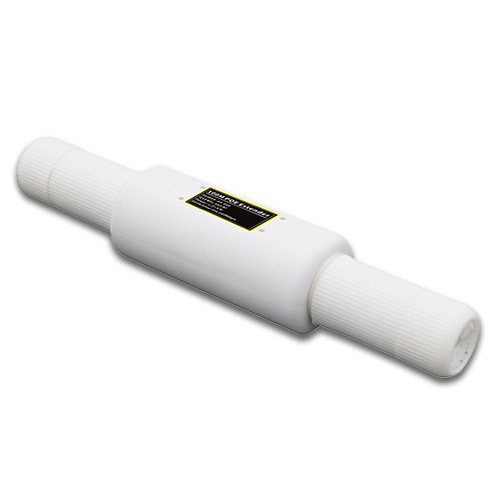

Secuview 100Mbps PoE Extender Durable, Weatherproof & Efficient.
* Extends PoE up to 100m.
* Auto 10M/100M mode detection.
* Switches to 10M extension if PD >100m.
* Lightweight, compact design.
* Waterproof with end protection.
* Ideal for medium/short PoE extensions.
* Solves PoE distance limitations.
The Secuview 100Mbps PoE Extender offers durable, weatherproof performance and extends PoE up to 100m with stable 100Mbps speed for reliable outdoor connectivity.
Versatile Application: Compatible with various PoE devices, offering flexible and reliable performance across different network setups.

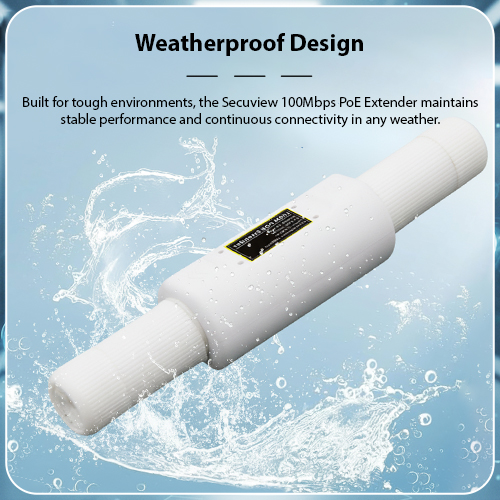

Weatherproof Design: Built for tough environments, the Secuview 100Mbps PoE Extender maintains stable performance and continuous connectivity in any weather.

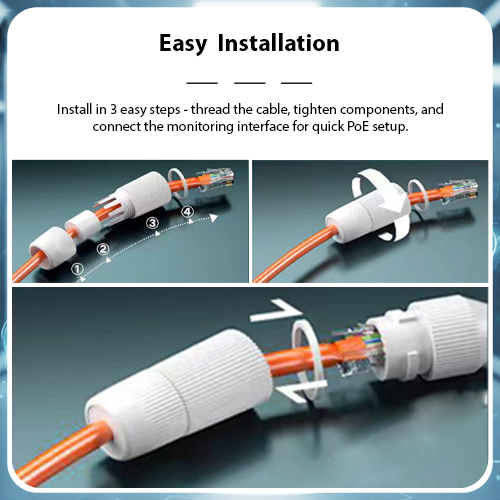

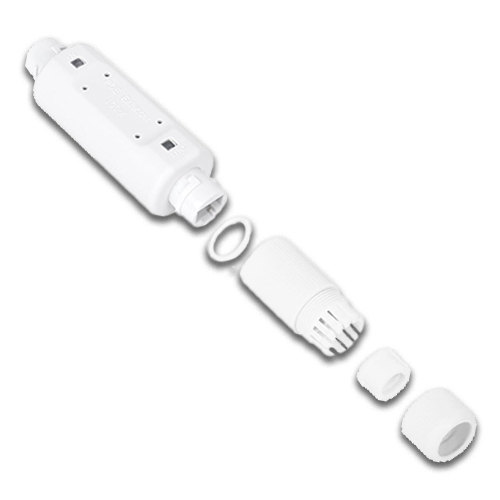

Easy Installation: Install in 3 easy steps -thread the cable, tighten components, and connect the monitoring interface for quick PoE setup.

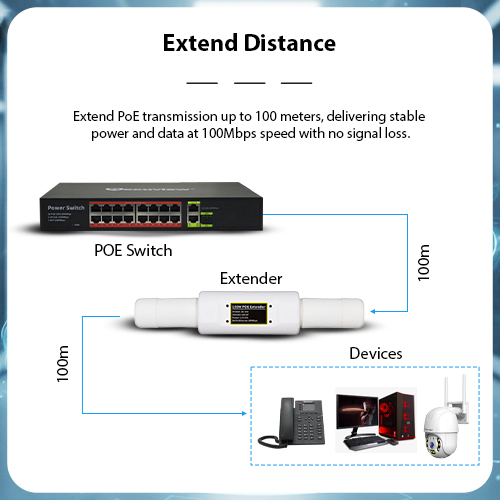

Extend Distance: Extend PoE transmission up to 100 meters, delivering stable power and data at 100Mbps speed with no signal loss.

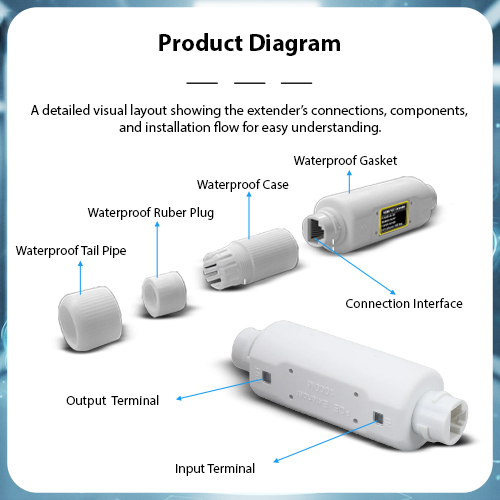

Product Diagram: A detailed visual layout showing the extender’s connections, components. and installation flow for easy understanding.

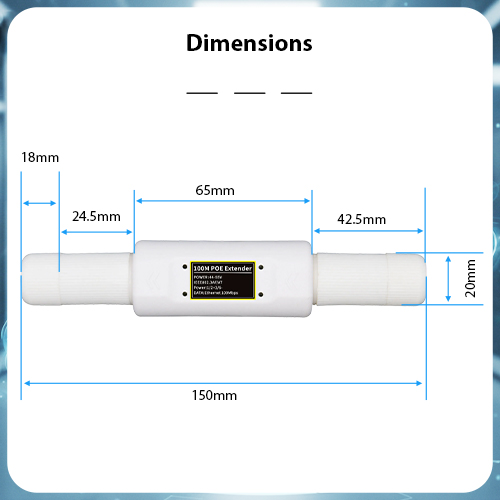

Dimensions:

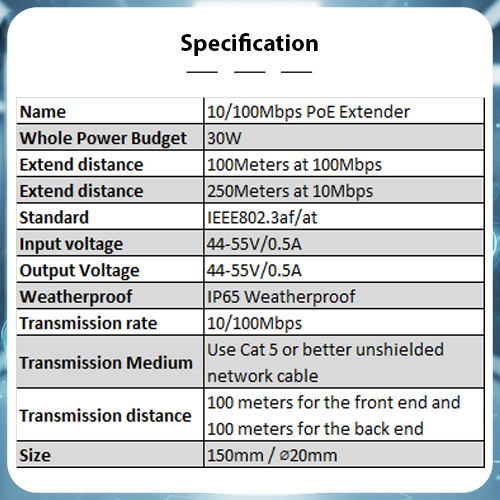

Specification:
Product Question & Answer
A PoE (Power over Ethernet) extender increases the maximum transmission distance between a PoE switch and a powered device without requiring an additional power supply. It delivers both power and network data over a single Ethernet cable, making it ideal for IP cameras, wireless access points, and other PoE-enabled devices.
The Secuview 100Mbps PoE Extender extends both power and data transmission by an additional 100 meters, helping overcome the standard Ethernet distance limitation while maintaining stable network performance for compatible PoE devices.
The extender is compatible with most 100Mbps PoE devices, including IP CCTV cameras, wireless access points, VoIP phones, network bridges, access control terminals, and other PoE-powered equipment. It works in a wide range of surveillance and networking applications.
No. The Secuview PoE Extender is powered directly through the incoming PoE connection, so no separate AC adapter or nearby electrical outlet is required. This simplifies installation, especially in outdoor or difficult-to-access locations.
The extender automatically detects whether the connected network operates at 10Mbps or 100Mbps and adjusts accordingly. When the connected powered device is installed beyond the standard distance, it can automatically switch to 10Mbps extension mode to help maintain a reliable connection.
This may occur due to damaged Ethernet cables, incompatible PoE equipment, loose RJ45 connectors, or exceeding the supported transmission distance. Verify the cable quality, check all network connections, and ensure the connected switch and powered device support compatible PoE standards.
Yes. The weatherproof housing is designed for outdoor environments and helps protect the internal components from dust and moisture. It is suitable for CCTV installations in villas, warehouses, parking areas, office buildings, factories, schools, and commercial sites across Doha, Lusail, Al Rayyan, Al Wakrah, and Al Khor.
The extender includes waterproof end protection that helps shield Ethernet cable connections from outdoor conditions. This design supports stable PoE transmission in exposed environments while reducing the risk of environmental damage to network connections.
No. The extender supports plug-and-play installation. Simply connect the incoming PoE cable, secure the waterproof connectors, and connect the powered device. No software configuration or network programming is required.
A PoE extender is the better option when only one remote PoE device needs additional distance. It reduces installation costs by eliminating the need for an extra powered switch while extending network connectivity for cameras, wireless devices, or access control equipment installed beyond the normal Ethernet limit.
