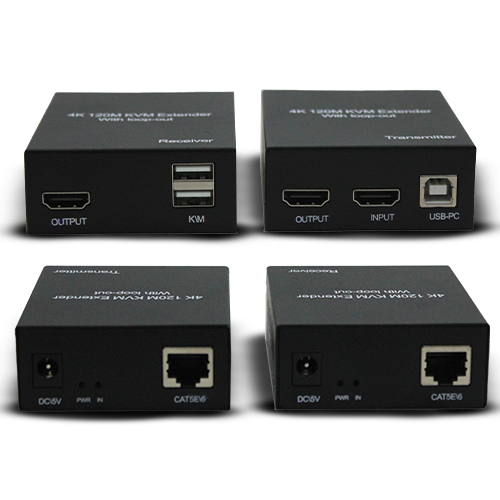

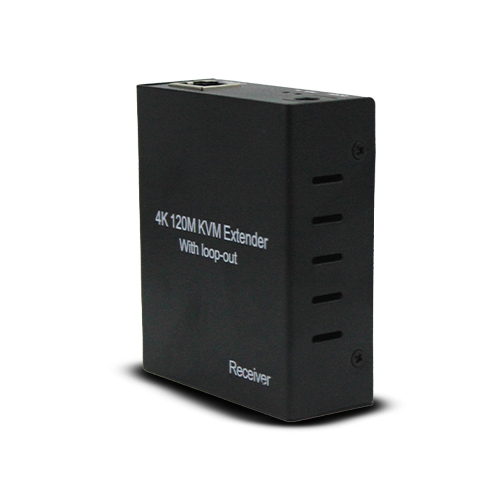

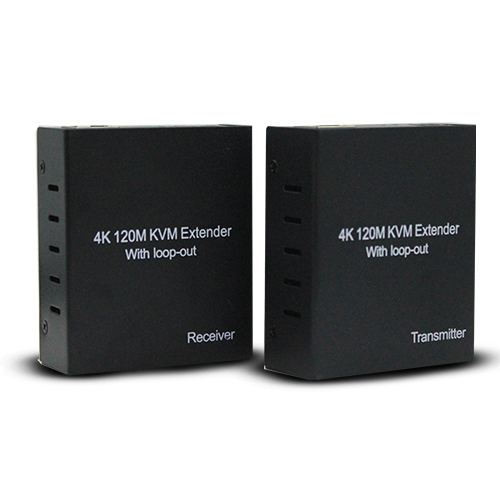

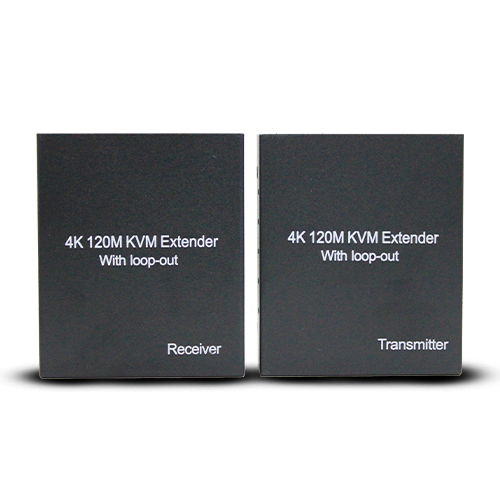

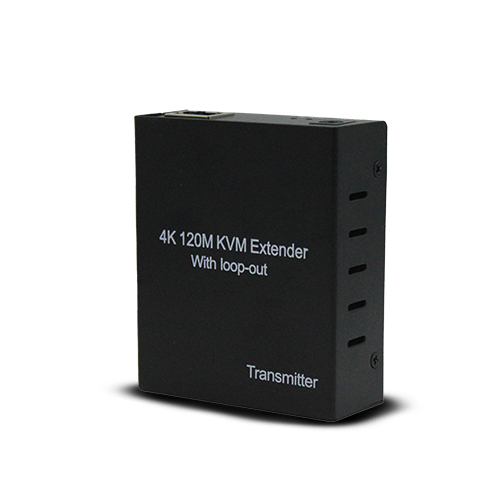

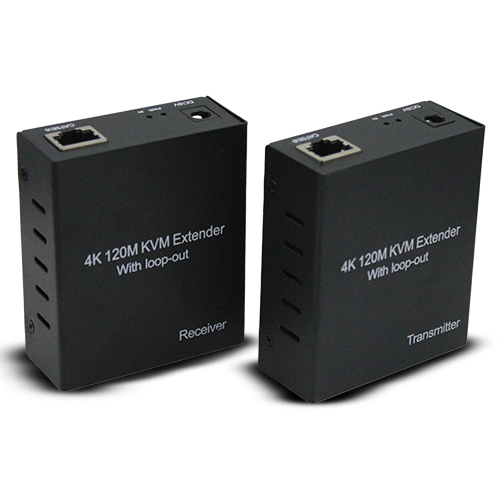

Secuview 4K Ultra HD HDMI + USB 120M KVM Extender | Loop-Out Supported.
Length of CAT-5e/CAT6 cable between Rx and TX: Up to 120 Meters
HDMI input: 4K@30Hz/1080p/720p/480p
HDMI Output: 4K@30Hz/1080p/720p/480p
Input HDMI cable distance: 10m AWG26 HDMI standard cable
Output HDMI cable distance: 10m AWG26 HDMI standard cable
TX max working current: 400mA
RX Max working current: 250mA
Power Adapter format: input: AC (50HZ,60HZ)100V-240V;0utput: DC5V/1A
Operating temperature range: (-15 to +55 ℃)
Operating humidity range: 5 to 90%RH (No Condensation)
Dimensions (L x W x H): 80x67x28(mm)
TX Weight: 122g
RX Weight: 127g

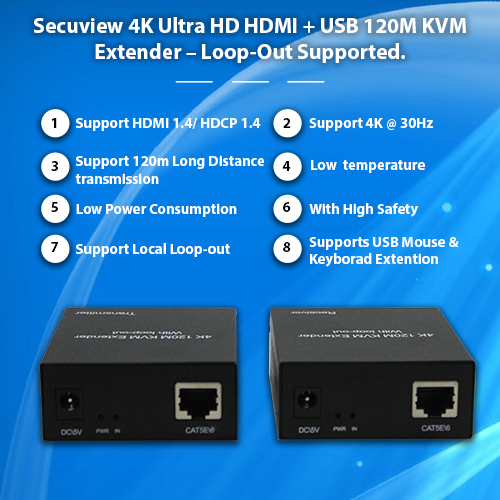

Secuview 4K HDMI + USB 120 m KVM Extender supports loop-out, enabling 4K Ultra HD transmission with remote keyboard and mouse control.

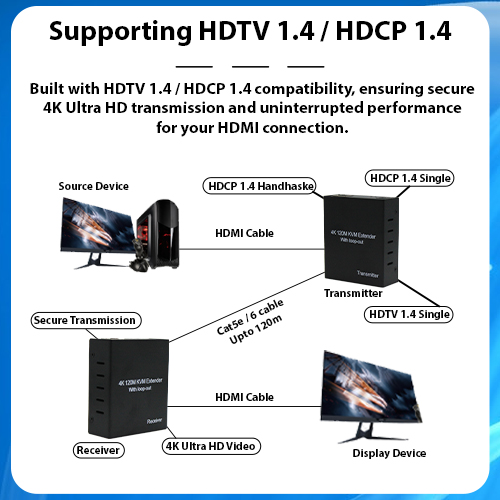

Supports HDTV 1.4 / HDCP 1.4: Designed for full compatibility, providing secure 4K Ultra HD transmission and smooth, uninterrupted HDMI performance.

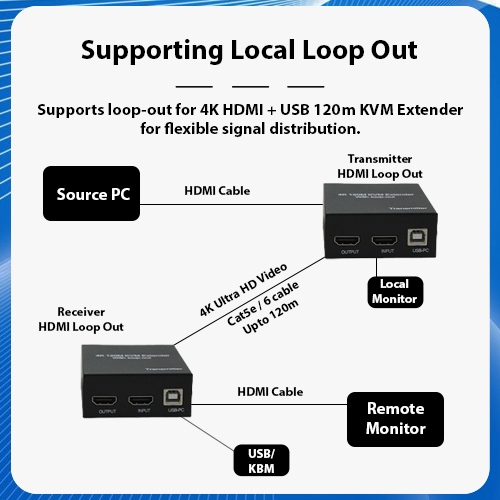

Supporting Local Loop-out: Supports loop-out for 4K HDMI + USB 120 m KVM Extender for flexible signal distribution.

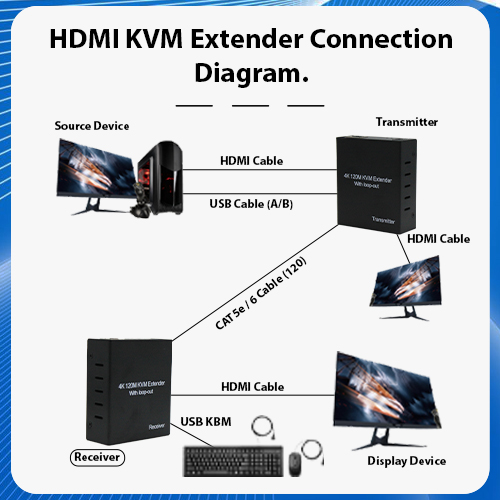

HDMI KVM Extender Connection Diagram Illustrates the connection setup of the HDMI KVM Extender—linking source and display devices via CAT5e/6 cable with HDMI and USB for video and keyboard/mouse control.

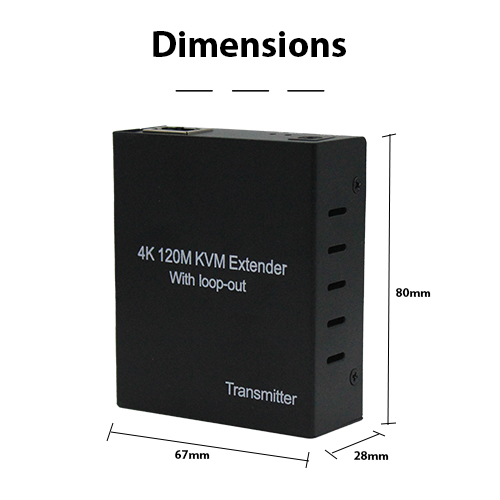

Dimensions:

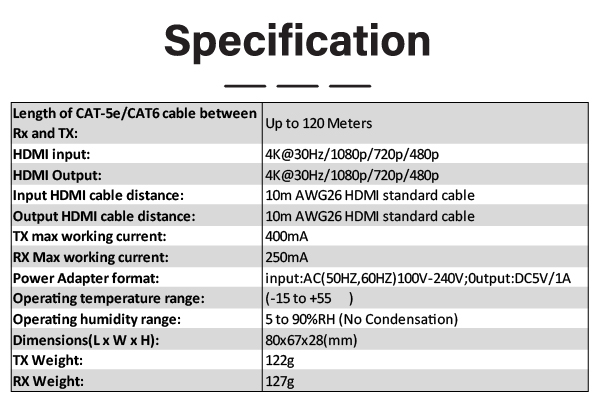

Specification:
Product Question & Answer
A 4K HDMI USB KVM extender allows you to transmit HDMI video, USB keyboard, and USB mouse signals over a single CAT5e/CAT6 cable, enabling remote control of a computer or DVR from a distant location. The Secuview 4K HDMI + USB 120M KVM Extender supports 4K Ultra HD resolution, 120-metre transmission, local HDMI loop-out, and remote keyboard and mouse operation, making it ideal for control rooms, server rooms, security monitoring, and professional AV installations.
The Secuview HDMI + USB KVM Extender extends both HDMI video and USB control signals up to 120 meters using a single CAT5e or CAT6 cable between the transmitter and receiver units, providing reliable long-distance operation without noticeable signal loss under recommended installation conditions.
The extender supports Ultra HD 4K@30Hz, along with 1080p Full HD, 720p, and lower HDMI resolutions. This ensures compatibility with a wide range of computers, NVRs, DVRs, media players, and display devices.
The HDMI loop-out feature allows the transmitter unit to connect to a local monitor while simultaneously sending the same HDMI signal to the remote display through the CAT6 cable. This enables users to monitor content locally and remotely at the same time without additional splitters.
Yes. The USB KVM function allows a keyboard and mouse connected at the receiver unit to control the remote computer or compatible device. This makes the extender an excellent solution for server management, CCTV monitoring stations, industrial control systems, and workstation operation over long distances.
No. The extender is designed for plug-and-play installation. Simply connect the HDMI and USB ports to the source device, link the transmitter and receiver using a CAT5e/CAT6 cable, connect the remote monitor, keyboard, and mouse, then power the units using the supplied adapters. No software installation or network configuration is required.
The Secuview 4K HDMI + USB 120M KVM Extender is widely deployed in CCTV control rooms, security operation centers, data centers, server rooms, government facilities, hospitals, educational institutions, factories, conference rooms, broadcast studios, and corporate offices across Doha, Lusail, Al Rayyan, Al Wakrah, Mesaieed, and Al Khor, where long-distance computer access and HDMI signal transmission are required.
A CAT5e/CAT6 cable provides a practical and economical way to extend HDMI and USB signals over much longer distances than conventional HDMI cables. It also simplifies cable routing through buildings while maintaining reliable communication between the transmitter and receiver units.
Yes. With 120-metre transmission, 4K Ultra HD support, USB keyboard and mouse control, HDMI loop-out, HDCP 1.4 compatibility, and stable long-distance performance, the extender is well suited for commercial AV systems, enterprise IT environments, industrial automation, and professional surveillance applications.
The Secuview 4K HDMI + USB 120M KVM Extender combines 120-metre CAT5e/CAT6 transmission, Ultra HD 4K 30Hz resolution, USB keyboard and mouse control, local HDMI loop-out, HDCP 1.4 compatibility, plug-and-play installation, and reliable remote operation, making it an ideal solution for professional KVM extension and long-distance HDMI distribution.
